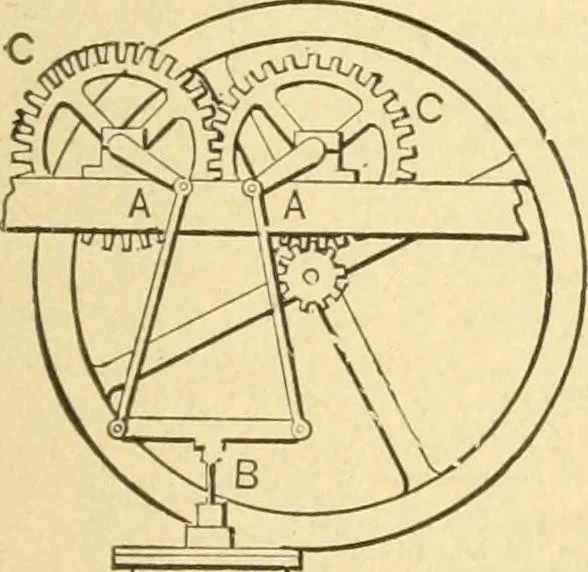

286. PARALLEL MOTION of a pistonrod by direct connection with a spur gear ro-tating upon the wrist pin of the crank. Thecrank-pin gear meshes in a fixed internaltoothed gear of double its diameter. One ofthe curiosities of old-time engineering. … 1 [
