Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 88

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 88

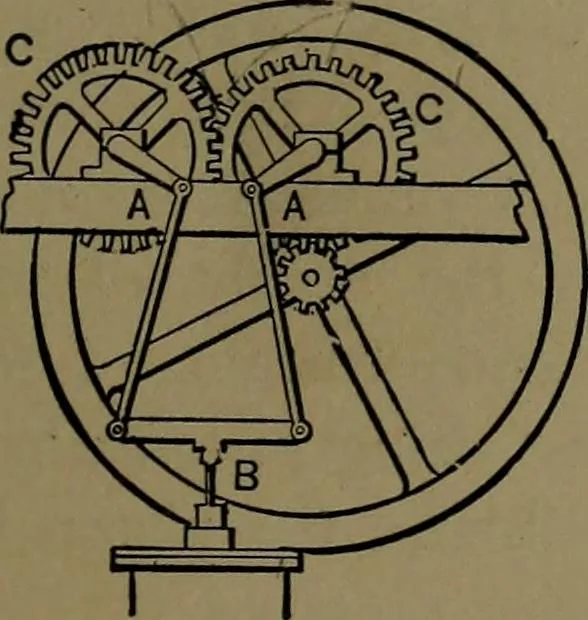

285. PARALLEL MOTION for an engine.The radius bars are of equal lengths from thecentre line of the engine and sliding pivot of thelong bar. Both fixed and sliding pivots at rightangles with the centre line when at half stroke. 286. PARALLEL MOTION of a piston rod by direct connection with a spur…
