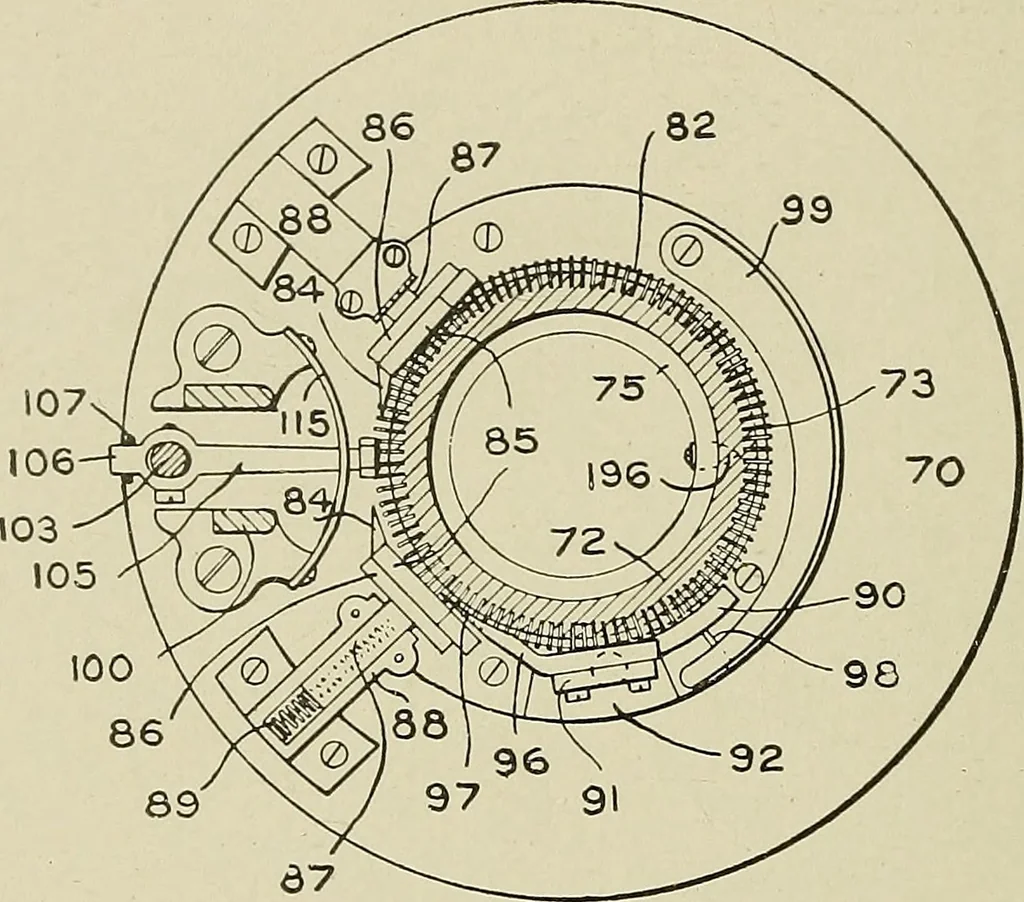

e needle-cylinderin a guide-block 88, secured to the ring 70. A spring 89, is confinedbetween the outer, closed end of the block 88 and the slide. Theupper, as well as the lower, surfaces of the cams are inclined, the func-tion of the upper inclines being to complete the raising of the needlesafter… … Fig. 153. ends of the heels of needles, the spring permitting the entire block andcam to be moved outward. During heel-and-toe work the rotaryreciprocating motion of the cam-ring causes first one cam to operate,the other being pushed away; and vice versa on the reverse movement.Heel and Toe.…
