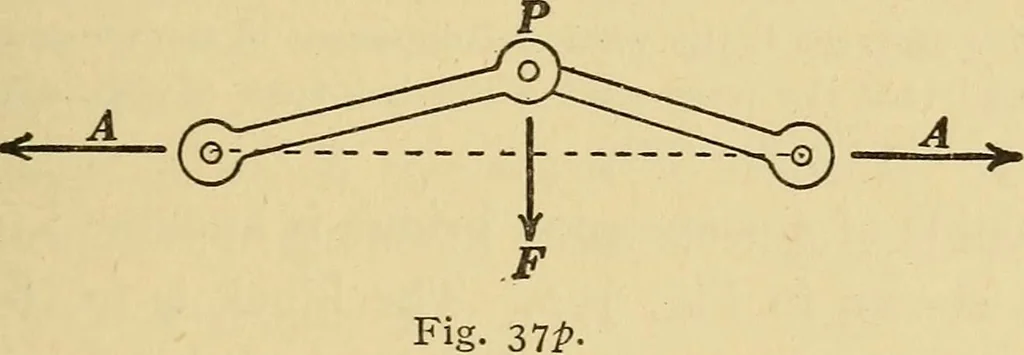

Fig. 35P- Fig. 36^. thrust of the beam. Ans. Tension in rope 1645 pounds. Com-pression in beam 3420 pounds. 37. The two links of a toggle joint are each 10 inches long be-tween centers of end pins, and the center of the middle pin P … in Fig. up is 0.5 inch from the center line of the end pins (the dotted line in Fig. 37^). Find the horizontal components A A of the forces exerted on the end pins when the force F is 50 pounds, ignoring friction. Ans. 499.4 pounds. Note. To neglect the friction is to consider the forces exerted at…
