Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 361

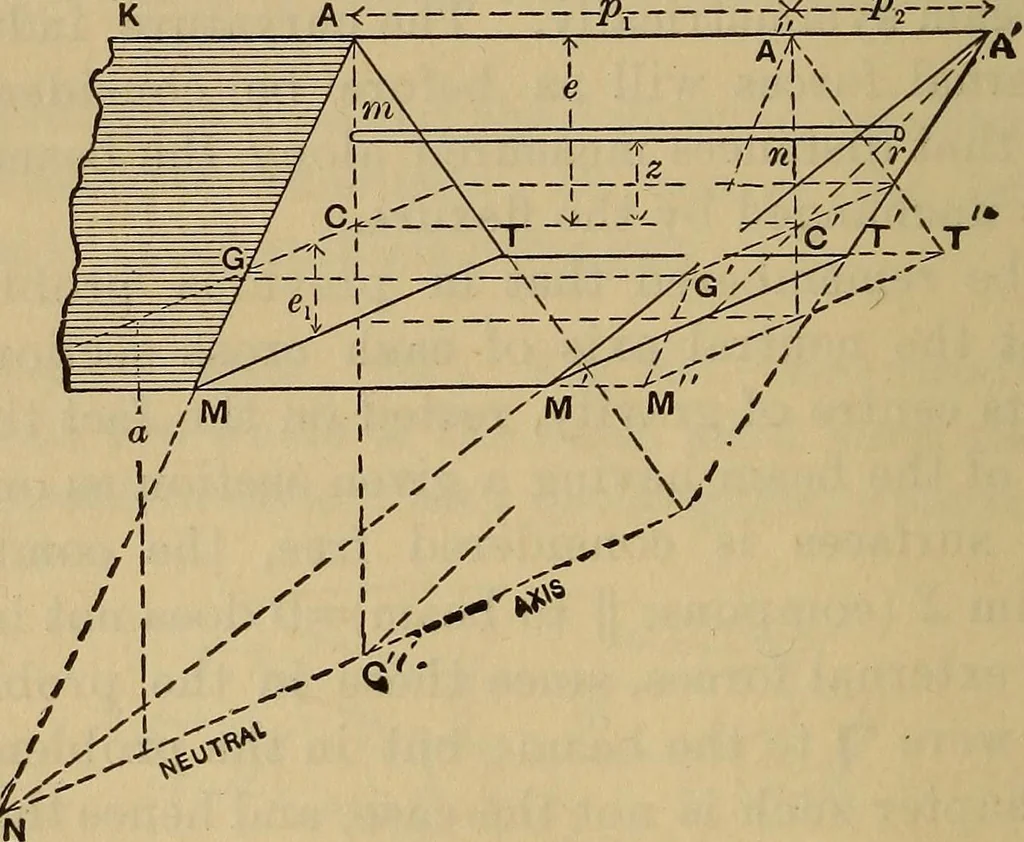

avity axis J to the force plane GAK.The stresses acting on the elements of area (each =dF) ofthe section consist of shears (whose sum=e7, the totalshear) in the plane of the section and parallel to the forceplane, and of normal stress parallel to AK and proportion-al per unit of area to the… … Fig. 296. =c H-a, to be prolonged an amount AA\ whose length bysome arbitrary scale represents the normal stress (tensionoi compression) to which the dF at A is subjected. Then,ii a plane be passed through A and the neutral axis NC9the lengths, such as mr, parallel to AAf intercepted betweenthis…
Mechanics, Applied · Engineering · Strength of materials
