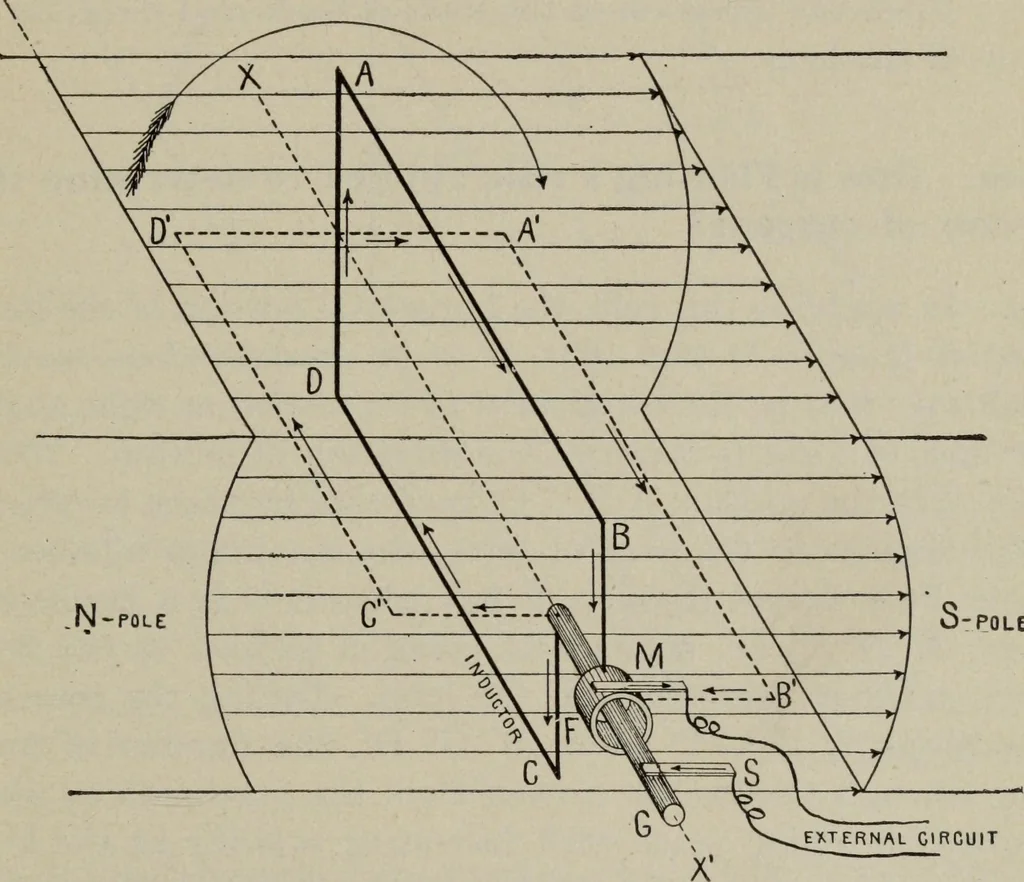

generated in thearmature when the machine is in operation. The long, straight,horizontal arrows joining the two poles of the magnet, represent THE DYNAMO: BASIC PRINCIPLES 163 the lines of force which make up the magnetic field between thepoles. The field is here assumed to be uniform, as indicated… … POLE Fig. 165.—Simple elementary alternator. Its parts are a single conducting loop, ABCD,placed between the poles of a permanent magnet, and having its ends connected with a.ring, F, and shaft, G, upon which bear brushes M and S, connected with the externalcircuit. When the loop is rotated…
