Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 452

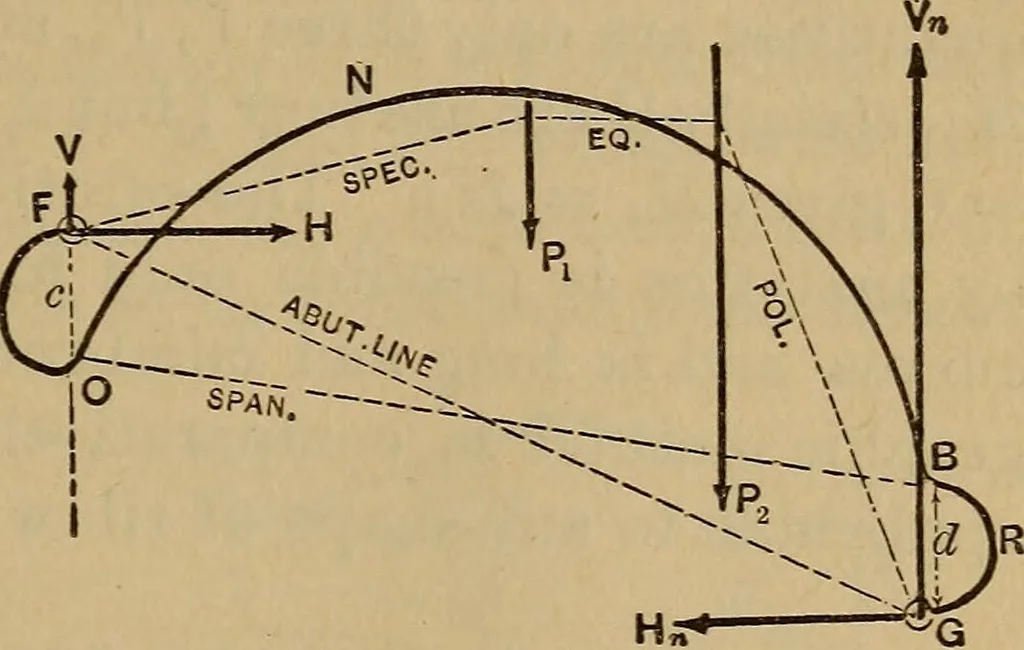

and Vn), and in this case of fixedends each of these two reactions is a single force not in-tersecting the end of the rib, but cutting the verticalthrough the end in some point F (on the left; and in G onthe right) at some vertical distance c, (or d), from the end.Hence the utility of these… … Fig. 402. 440 MECHANICS OF ENGINEERING. (dotted line), while 0 and B are the real ends of the curvedbeam, or rib. In this system of forces there are five unknowns, viz.: V,Vut H = Hnf and the distances c and d. Their determina-tion by analysis, even if the rib is a circular arc, is ex-tremely…
Mechanics, Applied · Engineering · Strength of materials
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
