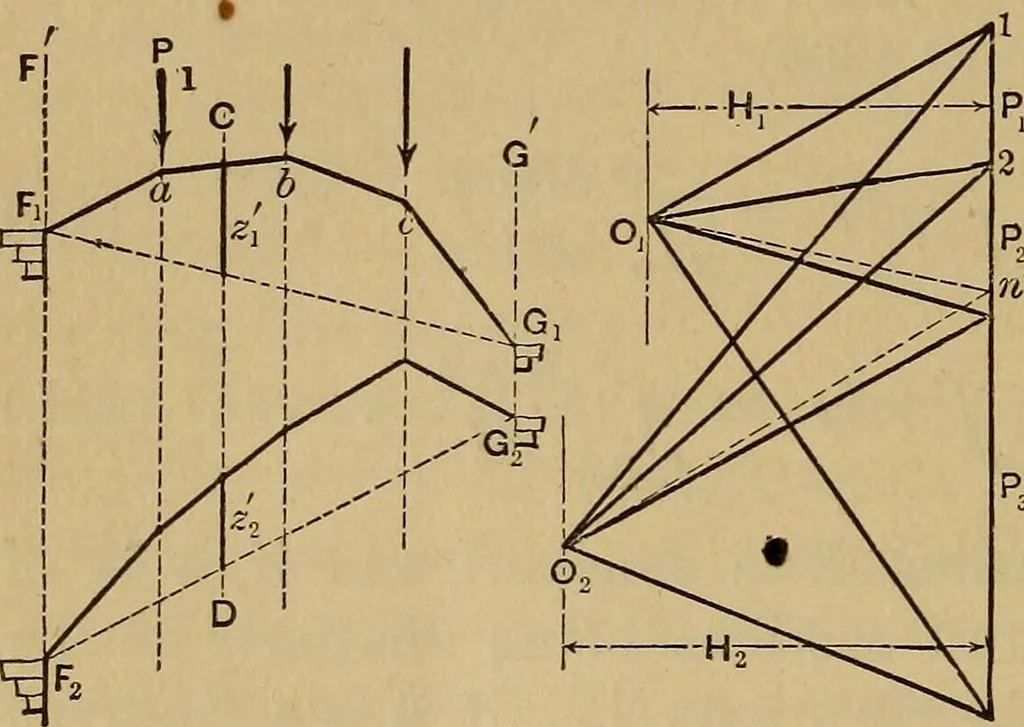

the rib-axis by the thrust, nor of the effectof a change of temperature.) 374a. Resumfe of the Properties of Equilibrium Polygons andtheir Force Diagrams, for Systems of Vertical Loads.—See §§ 335to 343. Given a system of loads or vertical forces, Pl9 P2i etc., Fig. 414, andtwo abutment verti-cals,… … 0, Fig. 414. vertical F} if we draw Fx... a || toline of Pj; then ab || to 0X.. 2, and so on until finally apoint 6rj, in G\ is determined; then the figure Fltabc Gxisan equilibrium polygon for the given loads and load verti-cals, and 0l... 1234 is its force diagram. The formeris so called because…
