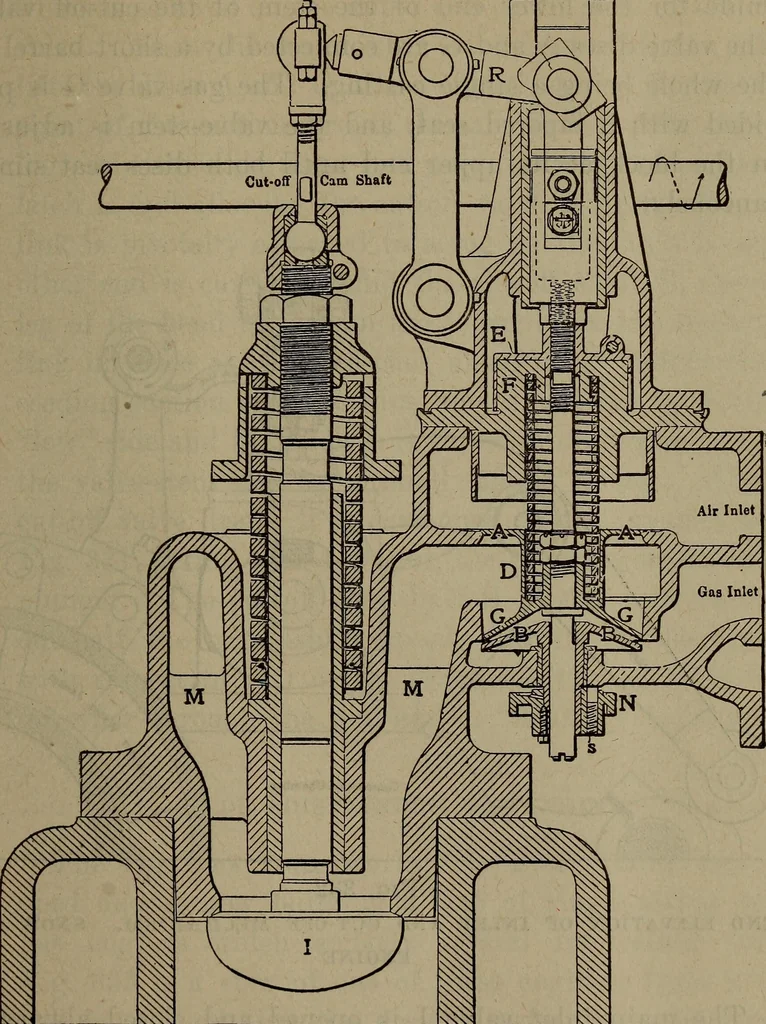

331. The air andgas pass to the mixing chamber M through separate ports,shown closed by the valve discs A and G, respectively. Fromthe mixing chamber the mixture is admitted to the cylinderby the main inlet valve I at the beginning of the suctionstroke; at the point in the stroke determined by the… … Fig. 331 sectional elevation of inlet and cut-off valves and gear. snow gas engine air, the adjustment being made by means of the knurledhead IST, which is locked in the proper position by the set-screw s. The shank of the baffling disc serves also as a 778 Steam Engineering guide for the lower end…
