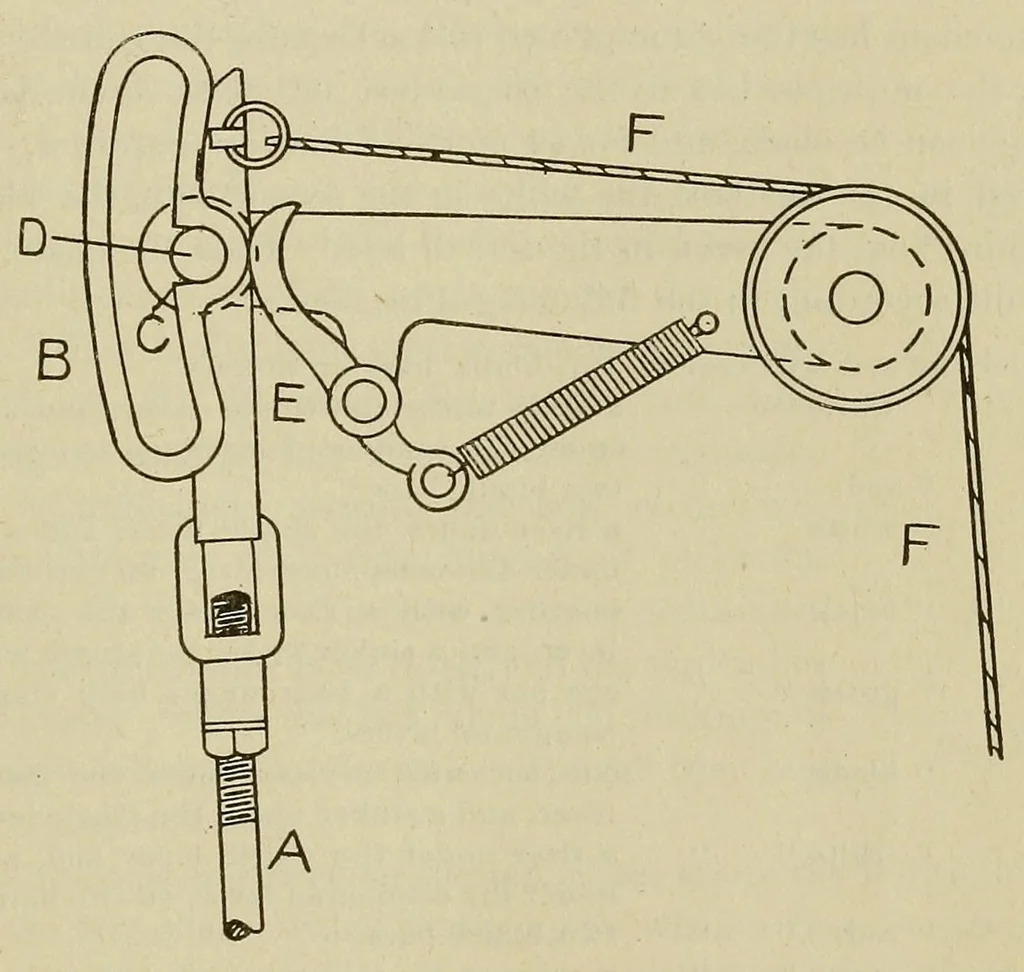

good example on wliicli to work. The main facts to be borne in mind are that the single lever will raise or lower one box and the compound lever will raise or lower two boxes. A riser placed on the chain to actuate the single lever will lift the boxes from first to second ; a riser placed on the… … Fig. 111. Disconnecting Device. place, build as follows: To return from fourth to second a riser under the single lever ; fourth to first, a blank bar ; third to second a riser under the suigie lever ; second to first, a blank bar, fourth to third, a riser under the compound. The boxes are in the…
Weaving
