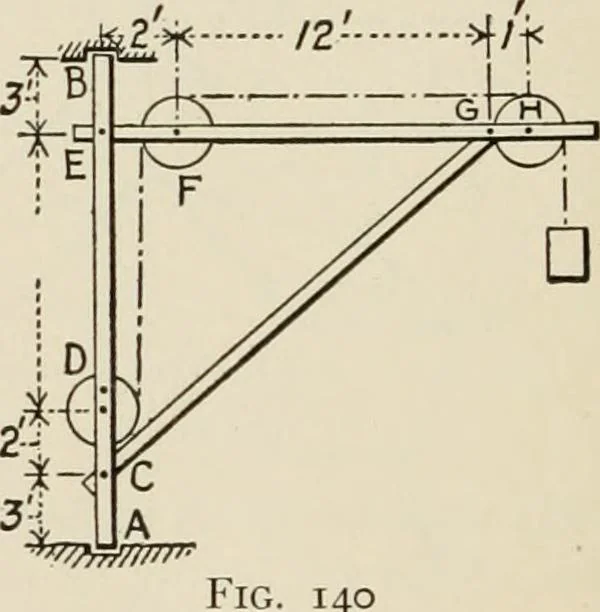

^•W/WWrr. Fig. 139 268-(i7). The cranepinned at B and is sup-ported horizontally at A.The load IF is i ton. De-termine the amount andkind of stress in each ofthe members C£, DE,and BE, and determineall forces acting upon thepost and boom. 26g-(i8). The crane represented in Fig. 139 is … 140 shown in Fig. 140 rests in a socket at A and passes through a hole in the floor at B, the sides of the hole affording horizontal support.
