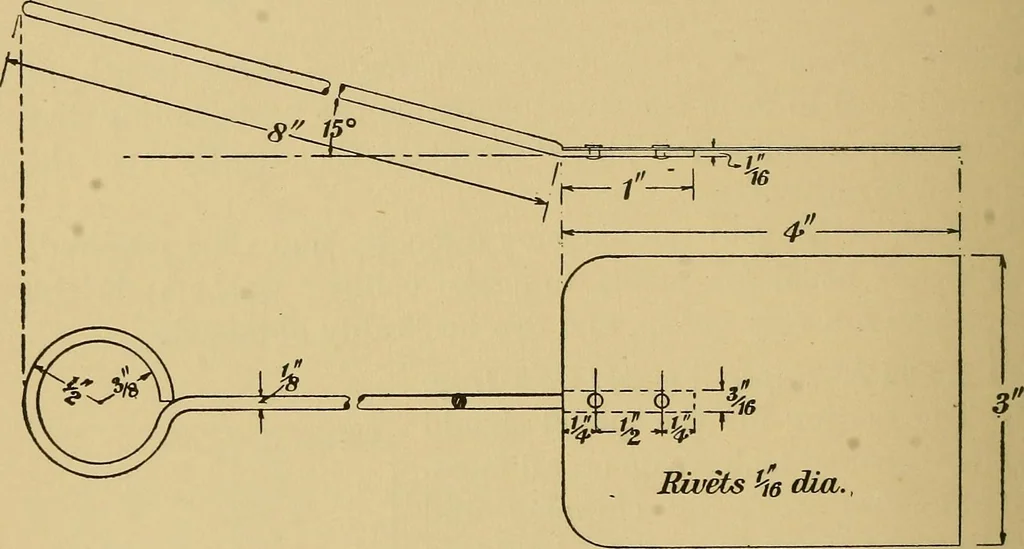

An illustration from Metal-work; a handbook for teachers and students, 1914, leaf 271
file to the lines thus obtamed, then mark out andfile the chamfer. The centre of the block can now be gotby joinmg the diagonals. Centre-pmich the exact spot, anddrill a yg-inch diameter hole, the tapping of which comj)letesthe model. To provide practice in scrapmg, the bottom faceof the model may… … Model 8. the hide mallet to prevent injury to the tinned surface ofthe wire. Having completed the handle, set off the correctdistance to the commencement of the flattening for the joint.The flattening out is best done by placing the mark on theedge of the anvil, and giving the wire a few smart…
