Methods of machine shop work : for apprentices and students in technical and trade schools (1914)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York : McGraw-Hill · leaf 121

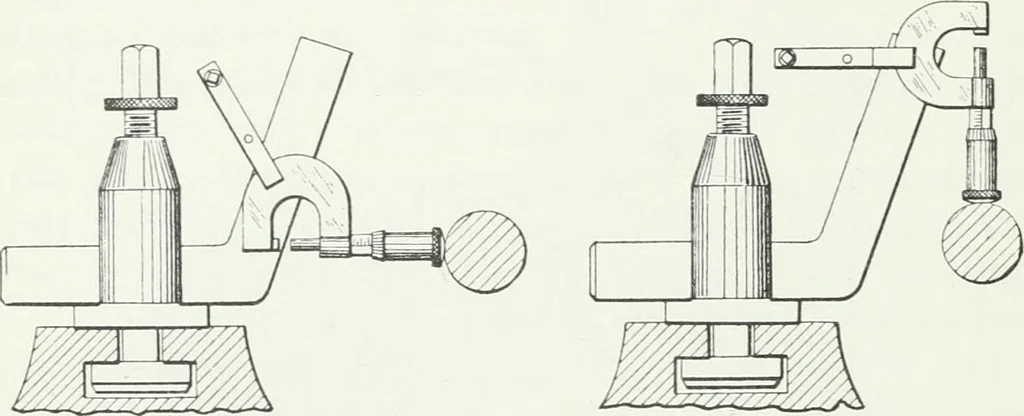

Fig. 90. … Fig. 91. Fig. 92. E.xtemporized tests with micrometer calipers. is clear that the squareness of the plate and with it the align-ment of the live spindle with the line of centers may be de-termined. Again by mounting the calipers as shown in Fig.91, taking a reading with the tail spindle drawn in,…
Machine-shop practice
