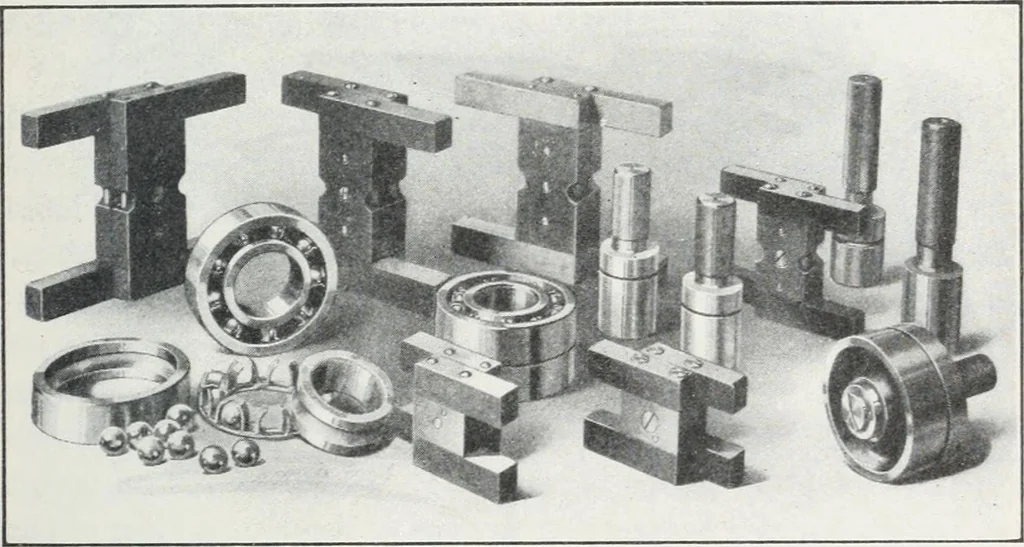

replace them inorder to restore the gage to its original size and with a triflingdegree of expense. This construction will be recognized as ^ b a 1 i ^. b \j 1 >-■< 1 U I 0 ■ • =-H./— Fig. gg Fig. 99.Modified snap and limit gages. Fig. 100. another application of the principle of the division… … Fig. ioi.—A collection of limit gages. jaws it must be repeated every time the jaws are lappedwhereas, if ground into the center piece, the lapping becomes,as with the single gage, a simple process of restraightening thejaws. In some cases the go and not-go gages when made onthis plan are entirely…
