The microscope : an introduction to microscopic methods and to histology (1911)

Gage, Simon Henry, 1851-1944 · Ithaca, N.Y. : Comstock Pub. Co. · leaf 31

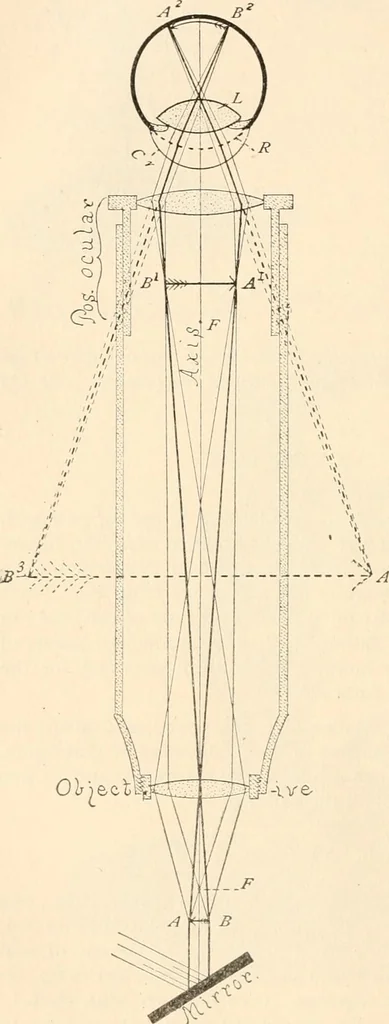

An illustration from The microscope : an introduction to microscopic methods and to histology, 1911, leaf 31 — f vision asthe virtual image {B^A^). t A B. The object. A*B\ The retinal image of the inverted realimage, (B1 A1), formed by the ob-jective. B^A3. The inverted vir-tual image, a projection of theretinal image. Axis. The principal opticaxis of the microscope and of theeye. Cr. Cornea of the eye.… … CH. I] MICROSCOPE AND ACCESSORIES 13The light is Mirror. The mirror reflecting parallel rays to the object,central. See Ch. II. Pos. Ocular. An ocular in which the real image is formed outside the ocular. Compare the positive ocular with the simple microscope {Fig. 16). NOMENCLATURE OK TKKMIXOLOGY…
