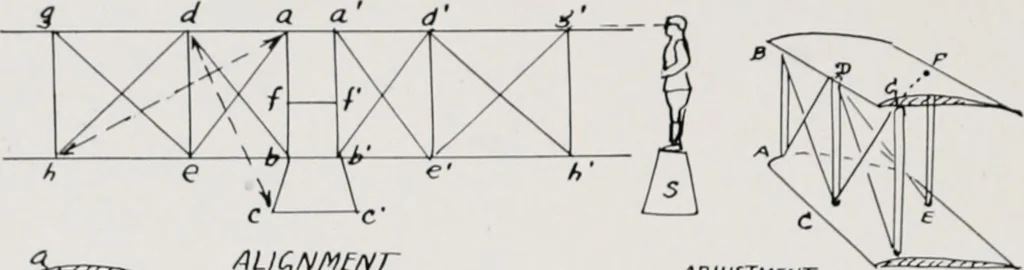

ver the body, on the four small struts. The first step inalignment is to make this center section parallel to the body and centeredover it. Since the body is lined up, and the section affa, is a parallelo-gram, it follows that the cross distances, indicated as af, may be madeequal, in order to… … <Sriii. re fi AllCNM[Nr ADJU5JMtNT H If IT 13 Pfilfiep TO K4l5f C ICK ei/WPlF THEWlMeS VI, DH, DA,MUST All »t LOOifNfV UP, BfFOHEC CAH 0f /^UliCJI, StMTf TV FY HOIJI CP/N PVITION. /irreft THfif Ane LoeieMcp^ c a ^a/jfd erTic,nT£Miii/c, cr,a;^ca, e(>u^ur. Diagrams for Alignment. It then…
