Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 153

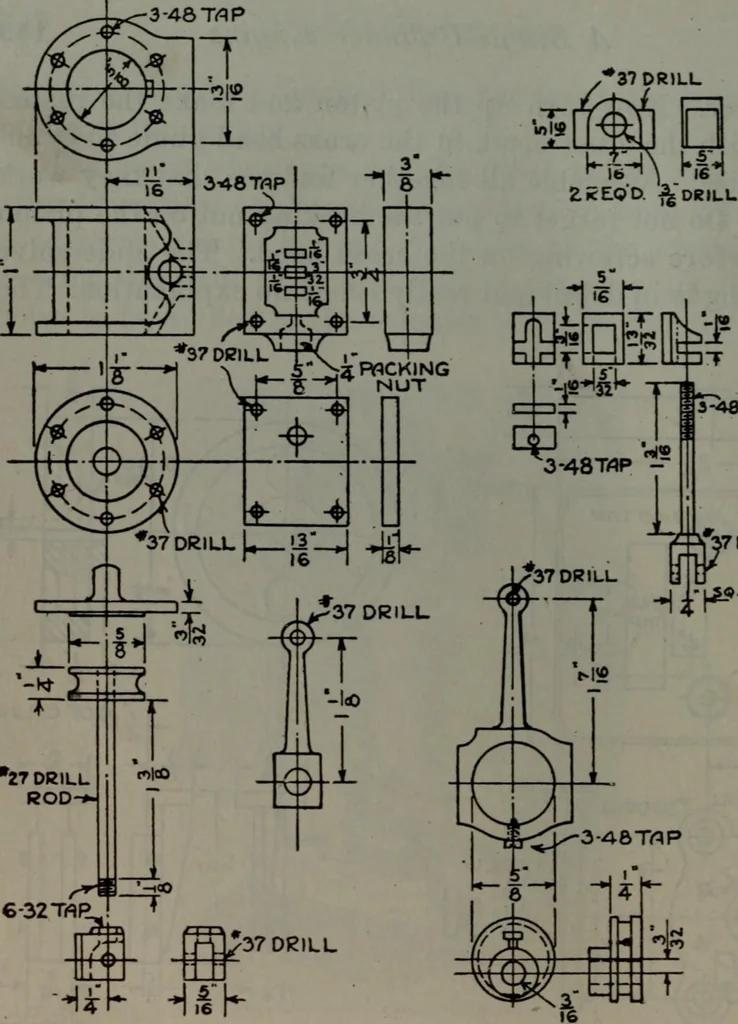

COUNTERSUNKFOR H^(\0 37 DRILLFig. 104A—Details of the upright engine eccentric casting will also be found to have chuckingpieces cast on. First, put it in the chucks so that the %-inch diameter can be turned, then take the offset andput in the chuck, center same and drill it with a %6-inchdrill.… … 3-48TflP 7 DeJLV. 5-48 T^R
Machinery
