Standards and conventions for mechanical drawing (1921)
Kepler, Frank Roy, 1875-, Detroit (Mich.). Board of Education · [Detroit] · leaf 26

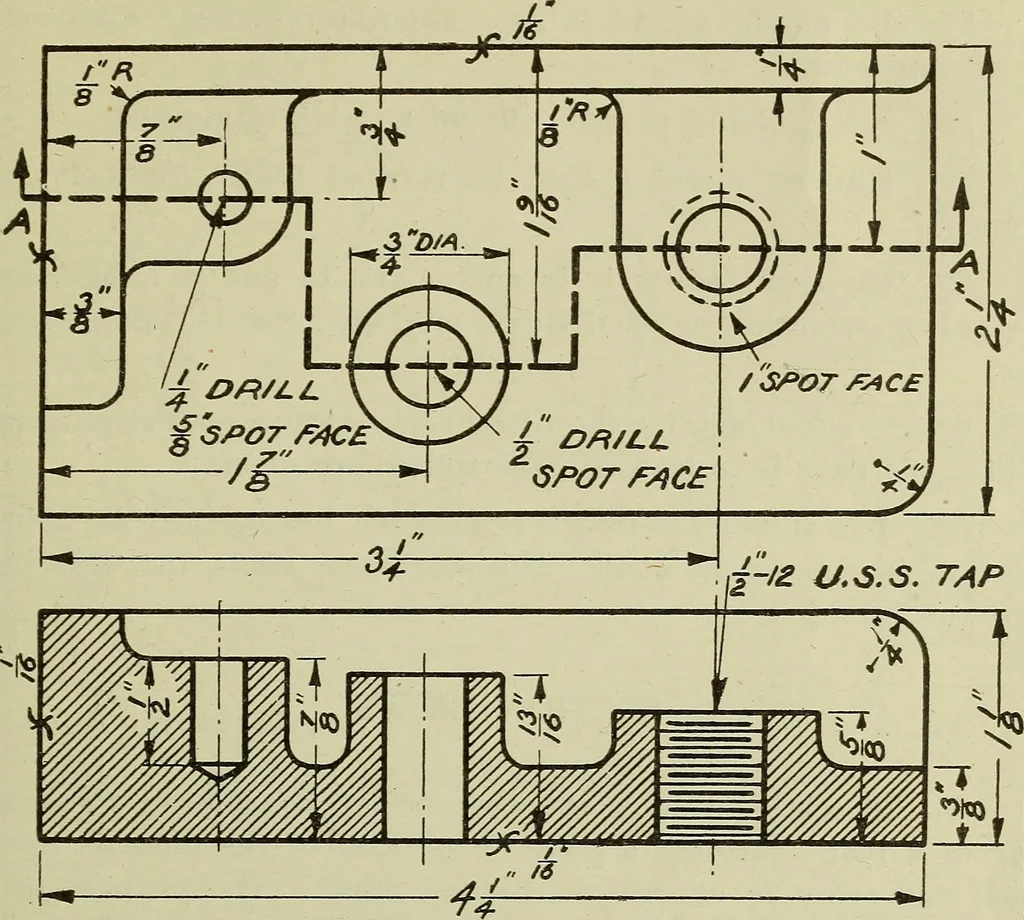

g out and finishing the work. 56. Drawings are figured for the machinist, cabinet maker,or builder, as the case may be. Be careful to give such dimen-sions as will be needed by the mechanic in laying out the work,making, testing and assembling. All figuring is up to the drafts-man. Add all ^^detail… … SECT/ON O/V A-A F/G. t r-TT I I I
