Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 300

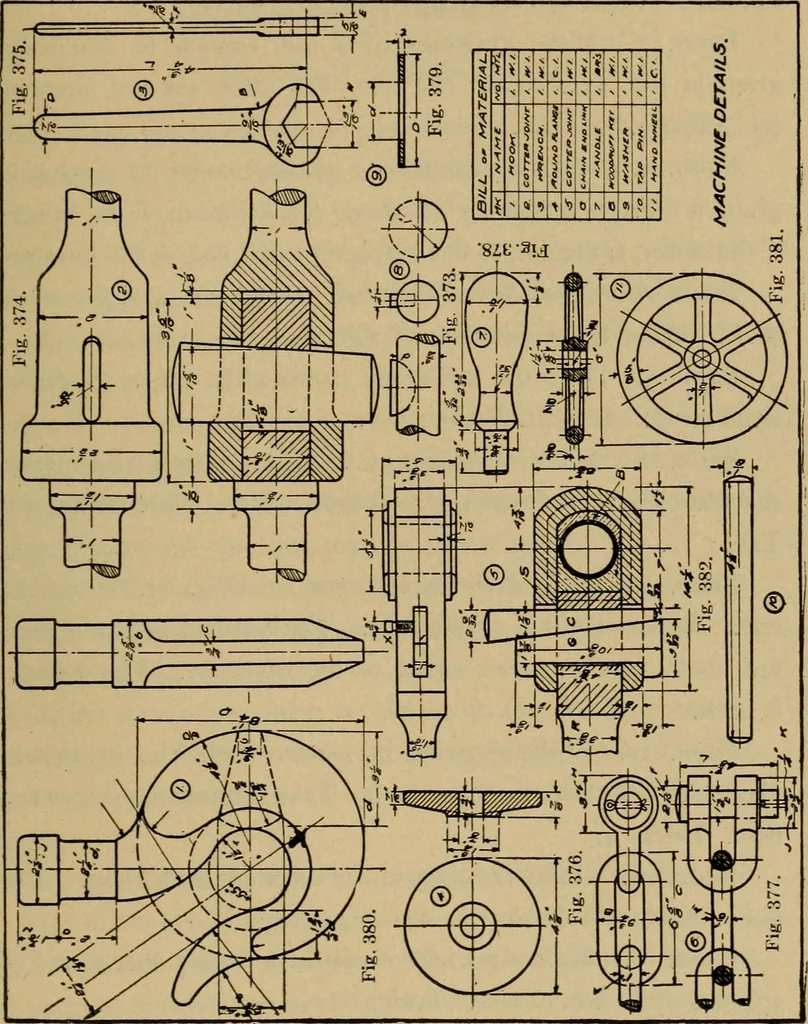

lit pin shown in Fig. 369. Scale,full size. Assume D = ^r, and d =.o$D + .13. The split pin is made from half round wire which when pressedinto form gives a circular cross-section. Selections from the following problems may be made toConveniently fill the space in Plate 34, allowing for title and… … 286 MECHANICAL DRAWING. Prob. 2. Make the drawings of a cotter joint, Fig. 374. Scale,full size. Taper of cotter is \ per foot. Prob. 3. Make drawings of a nut wrench to dimensionsgiven in Fig. 375. Scale, full size. For other sizes of wrenchessee Table 7. Prob. 5. Make drawings of a gib and cotter…
