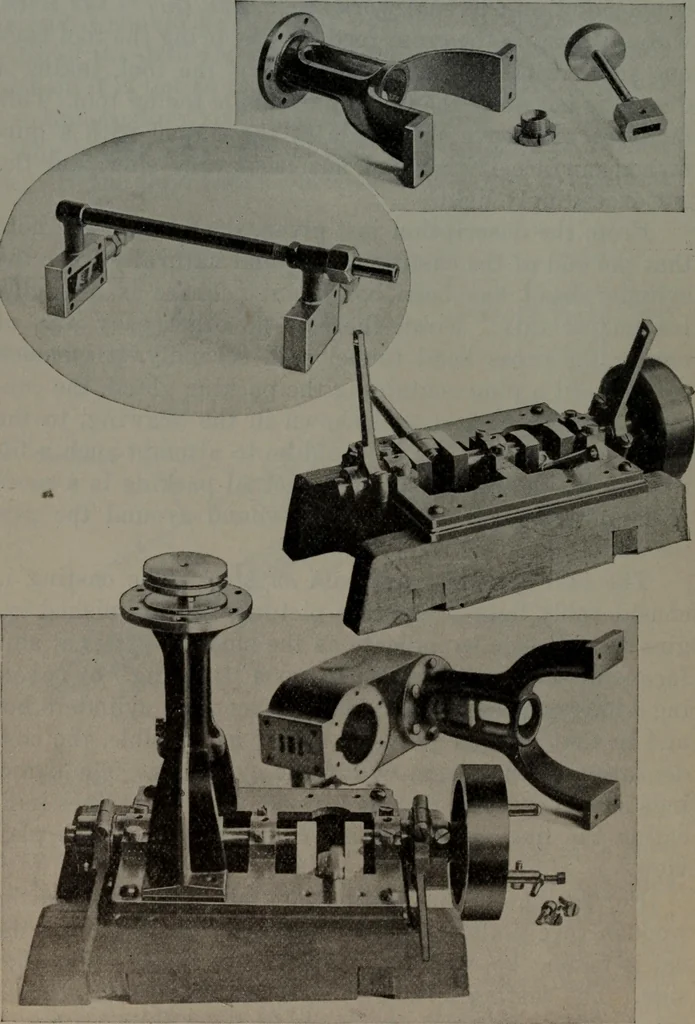

tual cylinder wall in the planview. For facing off, the casting may be mounted upon thewooden face plate with the casting centered. After thecut is taken, the work may be reversed to face the otherside. The casting is then scribed accurately with centerline and the two holes spotted to indicate… … Fig. Ill—The parts of the finished engine A Model Twin-Cylinder Marine Engine 163 drilled, but first of all the whole job should be balancedby bolting a small mass of metal to the side of the faceplate to compensate for the lack of balance and to pre-vent vibration which Avould destroy the accuracy…
