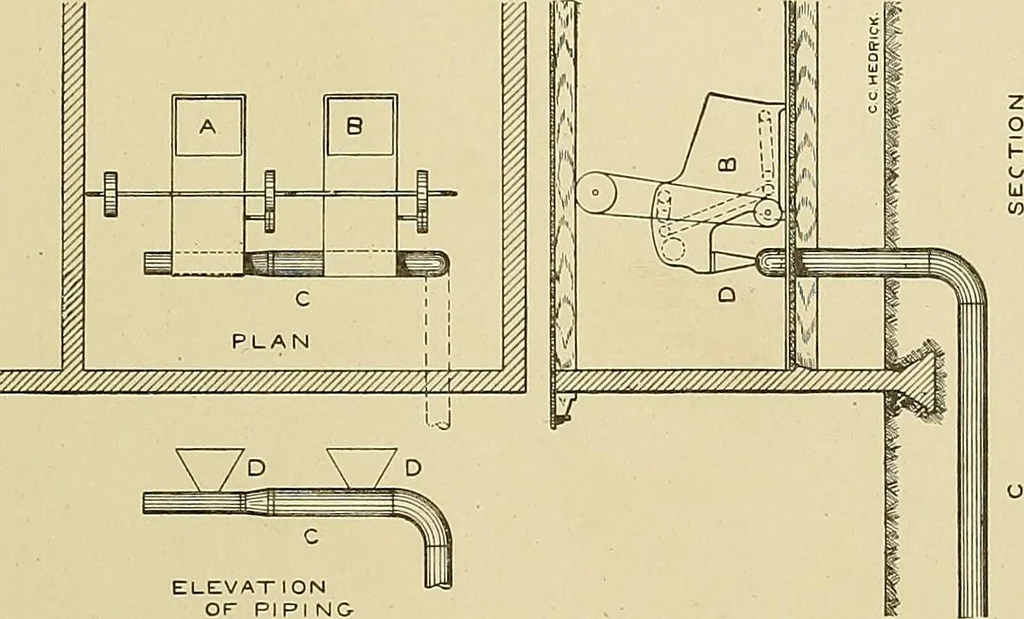

f this kind is shown in Figs. 23 to 27, inclusive.Fig. 23 is a plan and sectional elevation of a mill and storehouse,with a galvanized iron pipe 14 inches in diameter connecting themfor conveying the cotton, and Fig. 24 is a plan and elevation, ona larger scale, of the automatic feeders for this… … Fig. 24. Plau and Sectional Elevation of Feeders in Storehouse. A and B, with espeeialljr large hoppers, which are driven by anelectric motor and which deliver the cotton to the conveying pipe,C, through mouthpieces, D. The fan, E, for drawing the cottonthrough the pipe, is placed in the ojaener…
