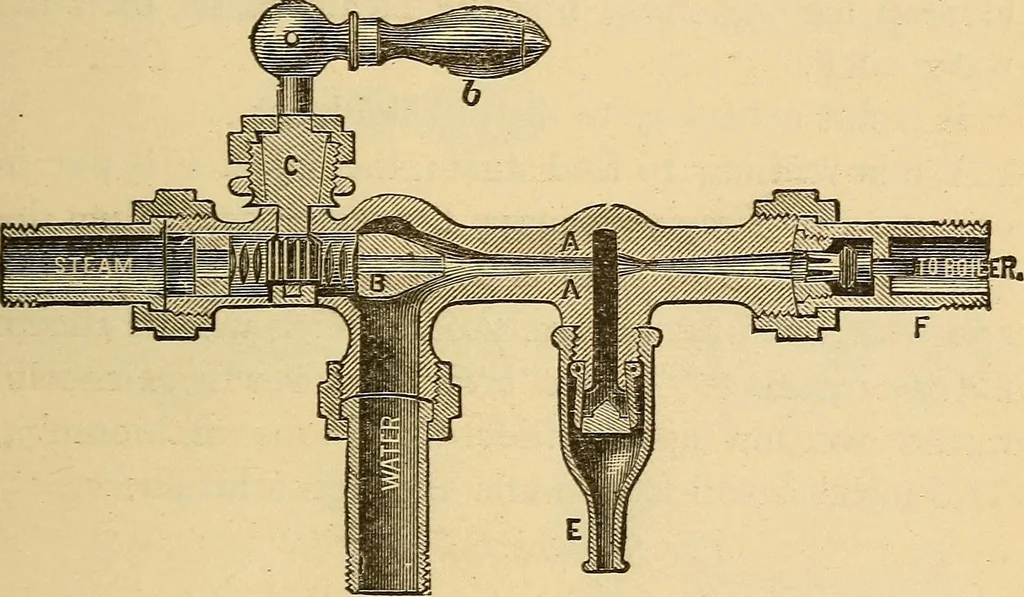

uch, so itwill receive a full supply. All pipes should be of the INJECTORS. 235 ( same internal diameter, to correspond with the in-jector coupling. Attach the steam pipe to highestpart of boiler, and as short as possible, to obtain drysteam; but in no case make attachments to pipes sup-plying an… … Fig. 75.—Non-suction Injector, A. pipe near the injector, as there is one in the swivelmarked to boiler). Use no washers or packing, as all joints are ground.Be particular, and remove all scale, cuttings and dirtfrom pipes, and see they are in perfect working orderbefore connecting. Method of…
