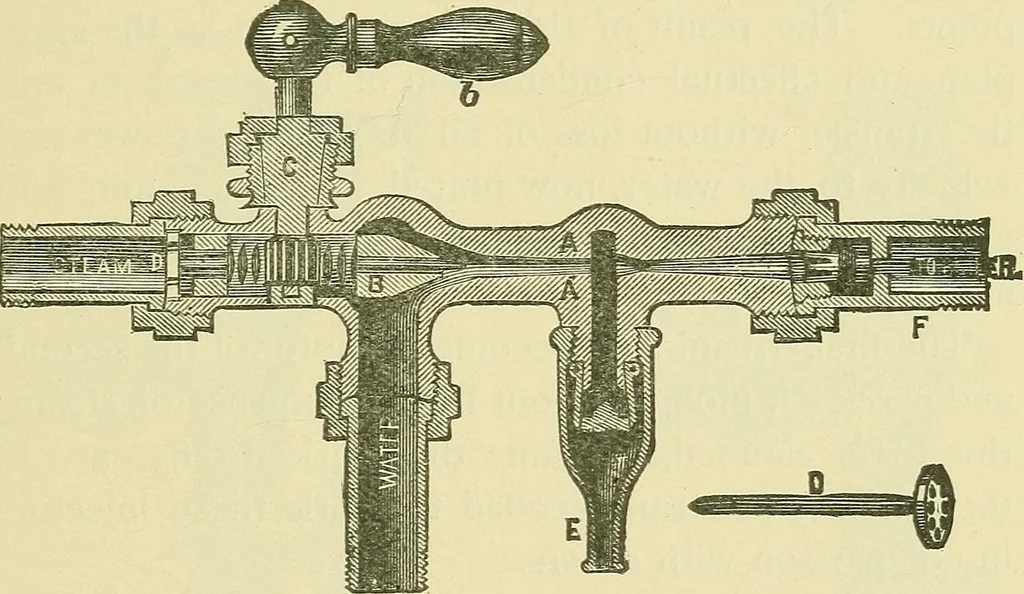

nd assists in INJECTORS. 237 carrying the water into the boiler; it being stationary,is always in proper position to produce a vacuum;and the steam necessary to carry the water into theboiler is simply obtained by moving the plug b^ with-out affecting the position or operation of the jet. Allpipes… … Fig. 76.—The Suction Injector B. see that all scale, cuttings or dirt are removed, and thepipes are in proper working order, and there is no dirtupon the plug B, or disk of jet D, to prevent theproper closing of the perforations. Method of Working Lifting Injector B!Open the steam valve to remove…
