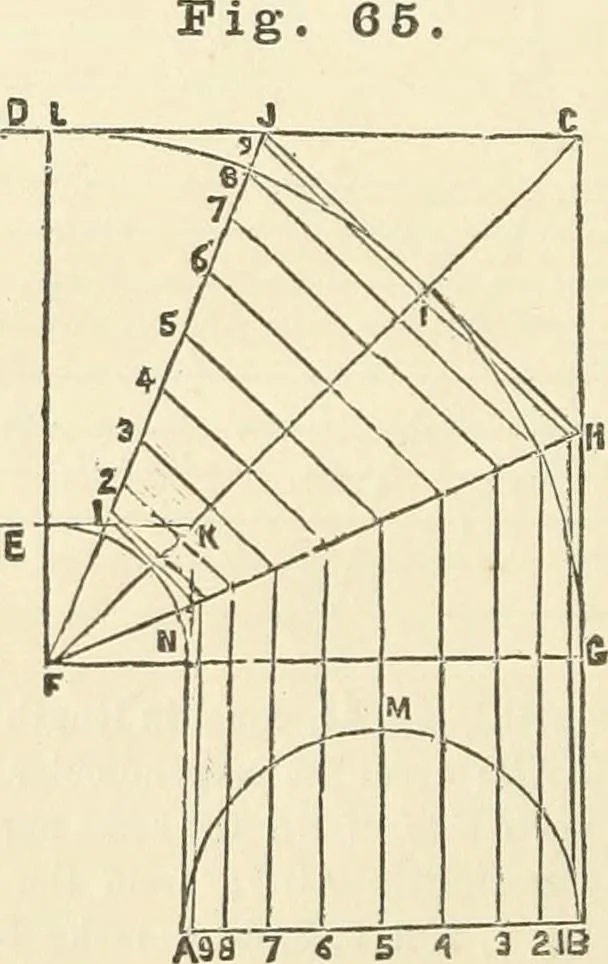

ect the perpendicular lines AF, BE andCD ; set off on each side of BE the same number of equal dis-tances, as in the semicircle AGB; from the points draw linesparallel to BE, as 1, 1, 2, 2, 3, 3, &c.; make BE equal to BF;make AF and CD equal to AE; also, each of the parallel linesbearing the… … 3 218 Let ABED, fig. 66, be the given elbow; draw the line FC; makeFK equal to one-half the diameter of the elbow, with F as a cen-tro ; describe the arcs GL ; divide the arc GL into four equal parts ;draw the lines FH and FJ ; also, the line JH ; draw the line ABat right angles to BO; describe the…
