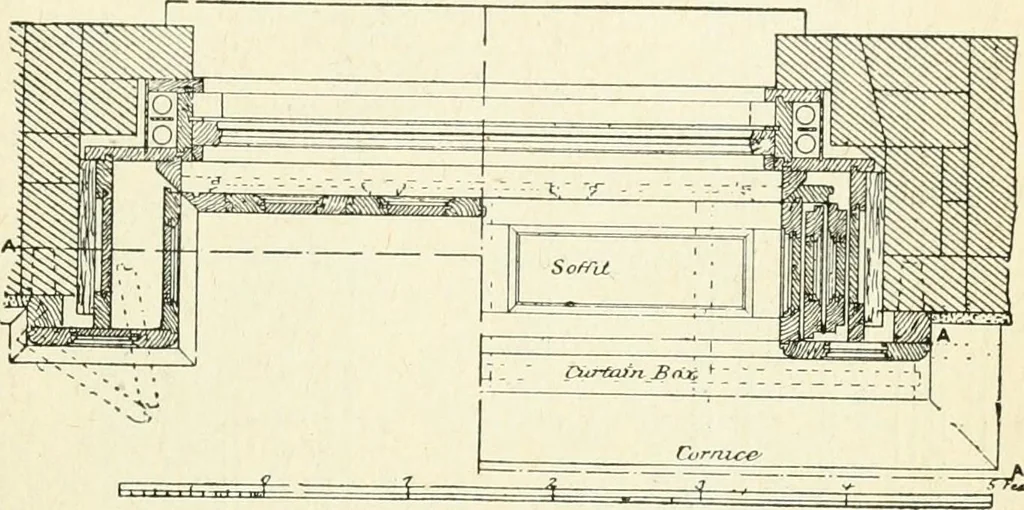

Fig. 55. PRACTICAL SOLUTIONS 191 Fig. 55 is a sectional elevation of a Window Fittedwith Boxing- Shutters having a cover flap and spacesfor a blind and a curtain. One-half of the elevationshows the shutters opened out and the front of thefinishings removed, showing the construction of theboxings,… … Fig. 56. tions of soffit cornice, &c.; the other half gives the planand sections of the lower parts, the dotted lines show-ing the Mandow back. Fig. 57 is a vertical section and Fig. 58 an enlargedsection through the boxings. The framed pilaster cov-ering the boxing is cut at the level of the…
