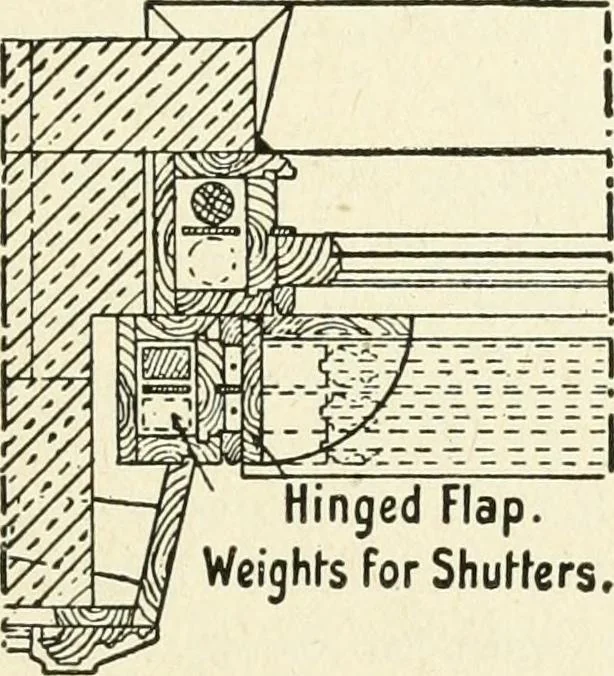

r of the shutters in Fig. 97 isnamed a rule joint. Sliding Shutters, working in vertical grooves andbalanced by weights, are sometimes used. They re-quire that the wall under the window sill shall be re-cessed; the floor also often needs trimming to allow PRACTICAL SOLUTIONS 227 space for them to… … mm Hinged Flap.Weighl-s for Shul-fers. Fig. 99. low the sill. Figs. 98 and99 are sections of ver-tical sliding shutters. Hinged Skylights. Skylights which arehinged to open are fit-ted upon the upperedge of a Curb orframe fixed in the planeof the roof, the com-
