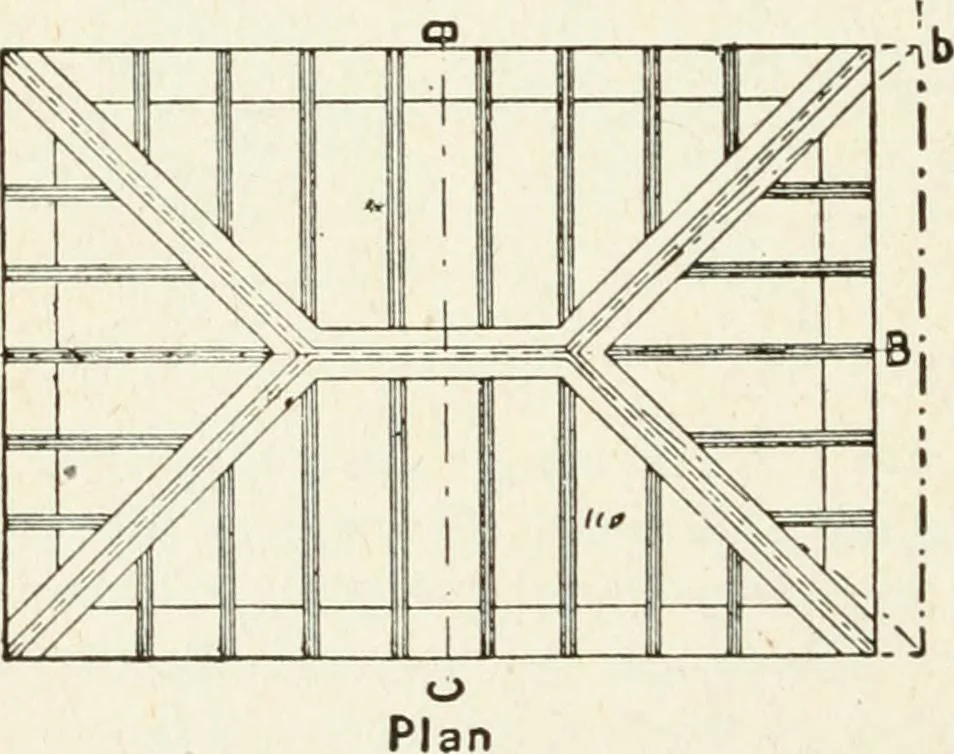

Section through CD. Fig. 109. the roof-lights are pyramidal as shown in Figs. 106 and110, and a separate frame is constructed as shown in … A^H Fig. 110. Fig, 110, the methods of obtaining the lengths andbevels of the hip rafters are similar to those describedfor getting hip rafters. When the roof-lights mitre PRACTICAL SOLUTIONS 235 against one another, the sizes of* the lights and thebevels of the angle stiles which mitre together…
