Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 245

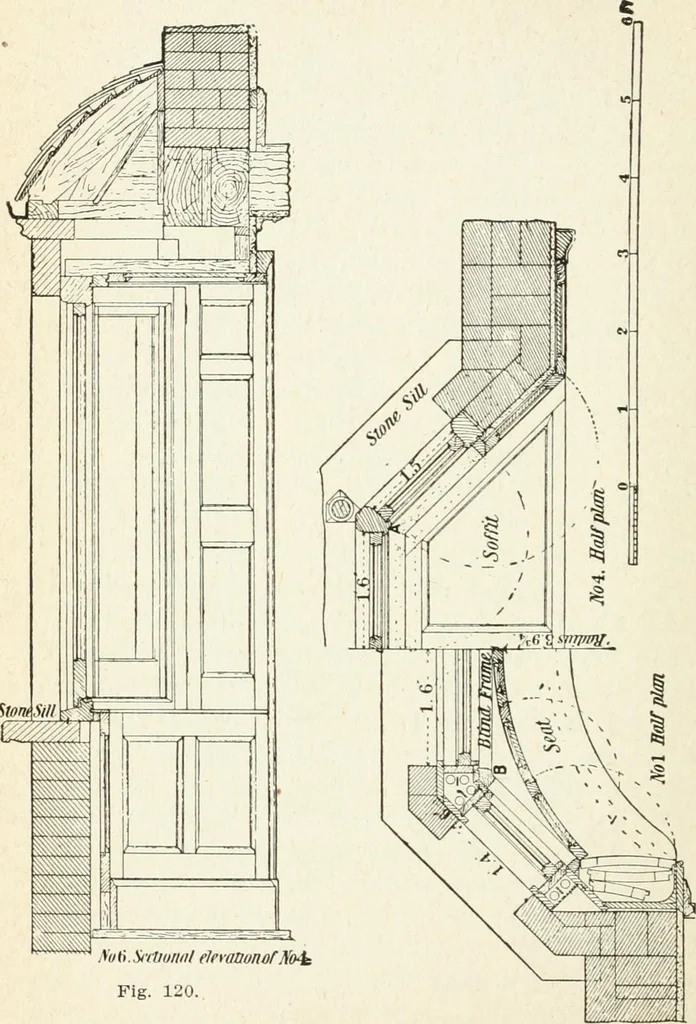

assing be-hind the rebated edges of the architrave; the lat-ter is continued down to the floor, and elbow linings tocorrespond with the shutters are fitted beneath thewindow board. These are fitted to the window backin the manner indicated by the dotted lines in theplan No. 4. The section No. 6… … to Aati.Sctliomi/ elrwDunof No^Fig. 120. PRACTICAL SOLUTIONS 243 ing on the stone cornice, and are nailed at the top intoa shaped rib fixed on the face of the wall; the ribs arecovered with weather boarding, which affords a goodfixing for the tiles. The wall is carried by a breast-summer formed of…
