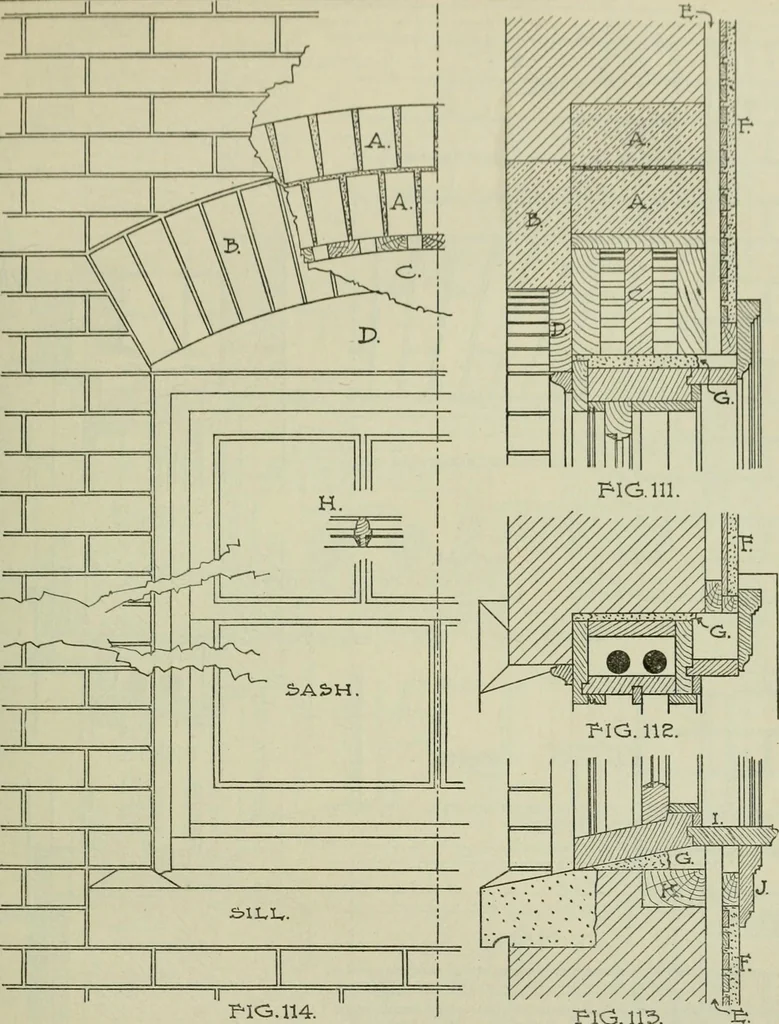

G WINDOW IN BRICK-VENEER WALL The wall is constructed of 2 by 4 studs, doubled brick wall is tied to the frame work every fiveat openings, plastered on the inside, sheathed courses and opposite every stud. Fig. 106, see-diagonally on the outside with matched boards; tion through window head. Pig.… … FIG. 114. FIG. 113. PLATE 60—BROAD WINDOW WITH SEGMENTAL HEAD Double hung windows construction in 13 inchbrick wall, the window finished with an arch onthe outside and a square head on the inside. Fig.Ill, section through window head, at center line.The opening is spanned on the outside by…
