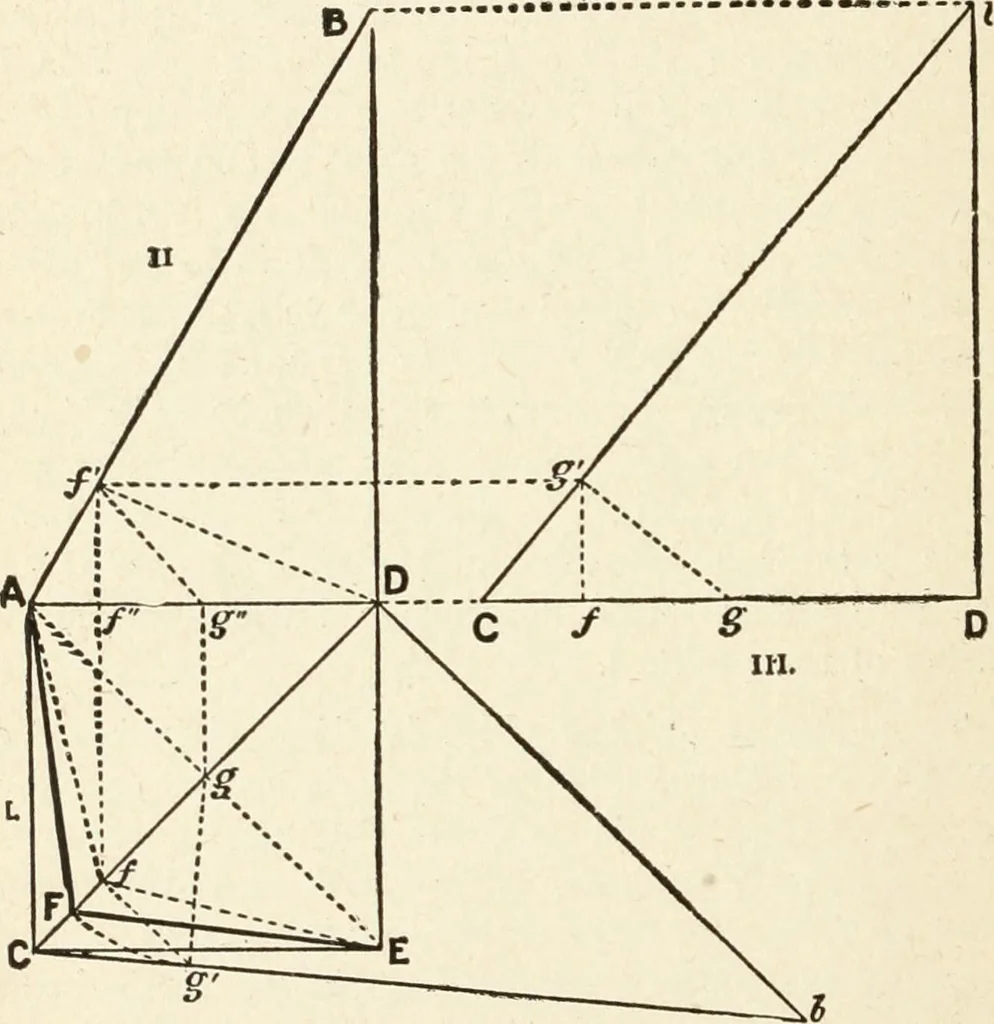

m g draw g E per-pendicular to A C, and meeting it in E; from E letfall a perpendicular E e or A c, meeting A c in e.F e D is the horizontal projection of the triangle FE D (see No. 11) and from this the vertical projection 28 MODERN CARPENTRY f e D can be drawn as shown. We have now ob-tained the… … I. Huiizoiital Projection. II. Vertical Projection on Plane AD-III, Vertical Projection on Plane_cj>.Fig. 13. true altitude of the triangle f e D, as e E is equal toe e. Set off therefore from g towards A a distance gE equal to g E:, and join F E, E D; F E D is the anglemade by the two…
