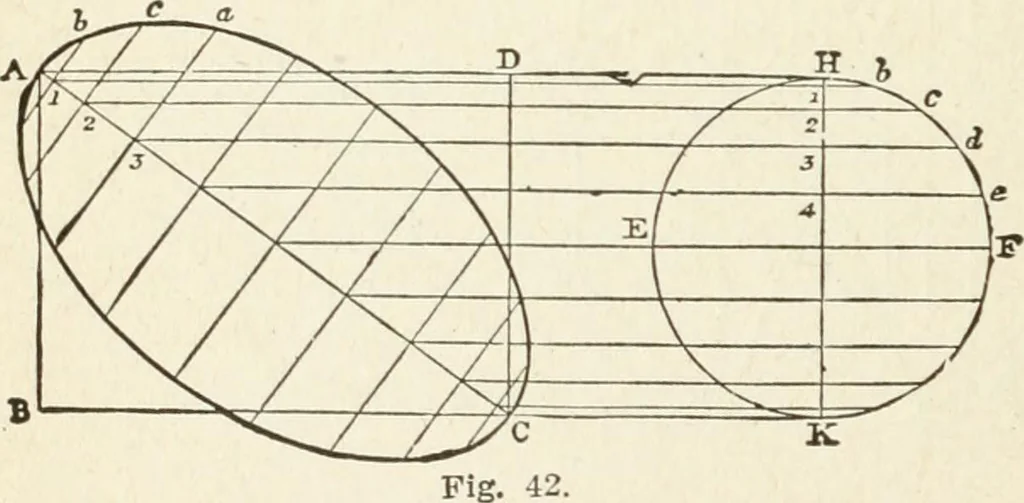

inder, andwhose width will be equal to the chord of the circle ofthe base in the line of section. Whence it follows, thatthe largest section of this kind will be that made by aplane passing through the axis; and the smallest willbe when the section plane is a tangent—the section inthat case will be… … XXXIII. To draw the section of a cylinder by aplane oblique to the axis. Let A B C D (Fig. 42) be the projection of a cylin-der, of which the circle E H F K represents the base.divided into twenty equal parts at b c d e, &c., and letit be required to draw the section made by the plane SOLID…
