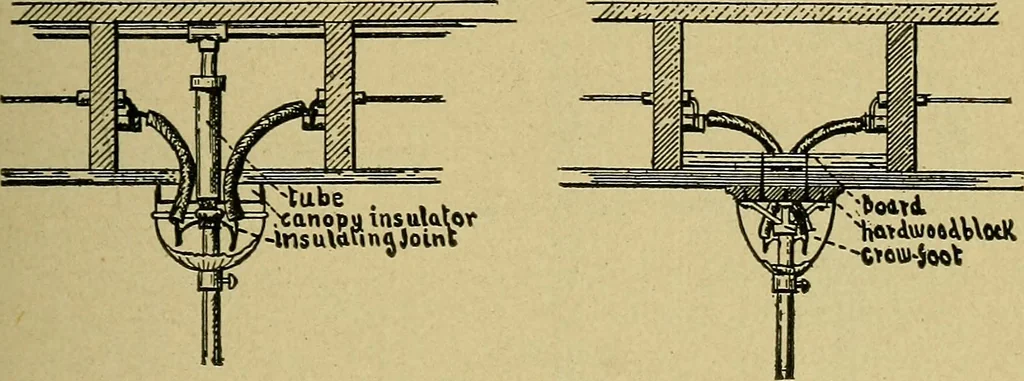

parts of ceilings. Insulating joints are made in a variety of patterns. Theone shown at a in Figure 96 is designed for use on a combina-tion gas and electric fixture, and is made to allow the gas topass through. Other forms, such as h, can be used on conduitwork to connect to the stub in the outlet… … Figure 97 the joint. If the gas pipe has been left long so that the insu-lating joint comes some distance below the ceiling, it is a goodplan to protect the pipe above the joint either by using a porce-lain tube which will fit over the pipe or by taping the pipethoroughly. Flexible tubing is also…
