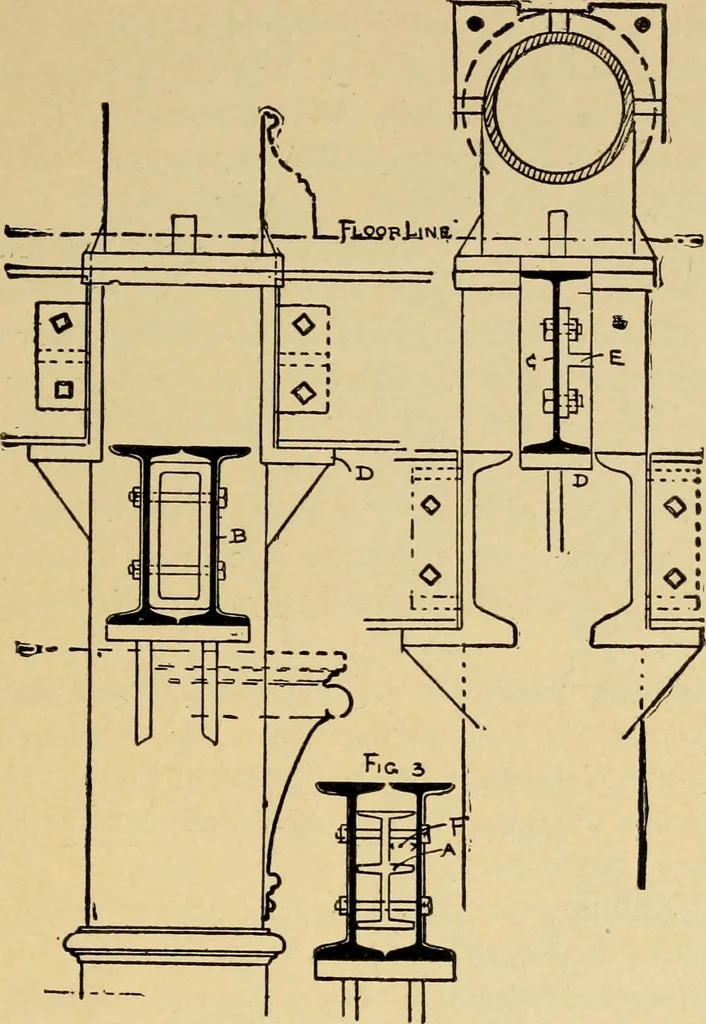

ppoor Section the simplest, cheapest and best finished connections for build-ings. The single beam has for its bearing a small bracket cast-iron columns. 57 at D, and for connection a lug at C, with a stiffening web (E)at side. For the double-beam girder a lug separator is cast on thecolumn,… … Fig. 3 shows another kind of lug, but one not so good as theformer, for the reason that if there is any tendency to pull thegirder from column, the bolts will be apt to bend at distance F. The lugs and brackets should not be less in thickness thanthe body of column ; and allow 5 to 6 inches…
