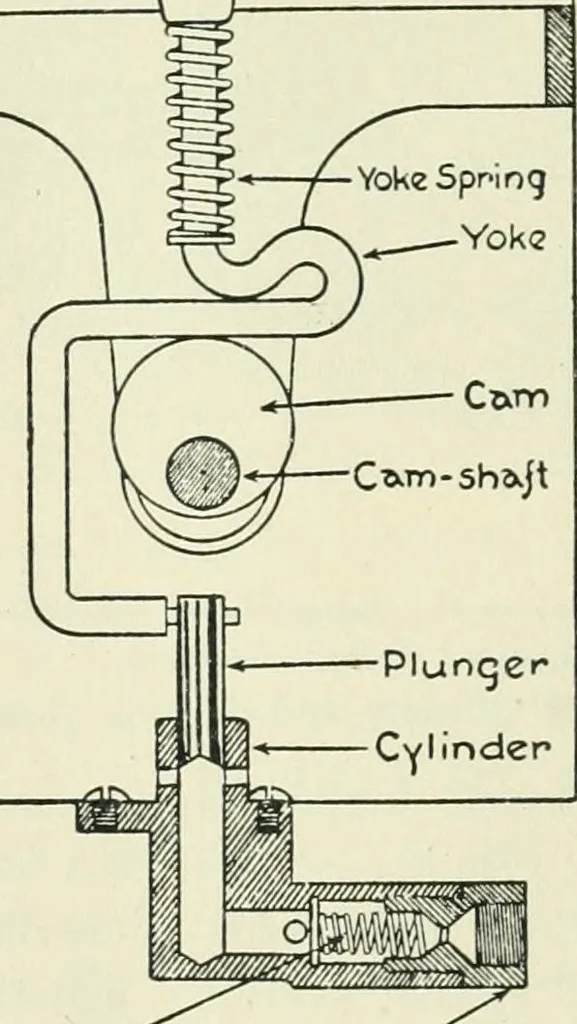

is clearly shown at 240 The Modern Gas Tractor Fig. 90. It will be observed that six pipes lead from thebottom of this device, four of which go directly to thecylinders while one goes to the timing-gear case at thefront end of the motor and the remaining one directlyto the crank-case interior. The… … Check plunger ■^ Feed tubeTo Motor- Fig. 91.—Sectional View of Simple Mechanical LubricatorShowing Parts. The Modern Gas Tractor 241 through one of the pumps is depicted at Fig. 91. Thepump plunger is operated by means of a metal yokewhich rides on the surface of the operating cam. Theyoke is kept…
