The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)

Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 286

An illustration from The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field, 1919, leaf 286

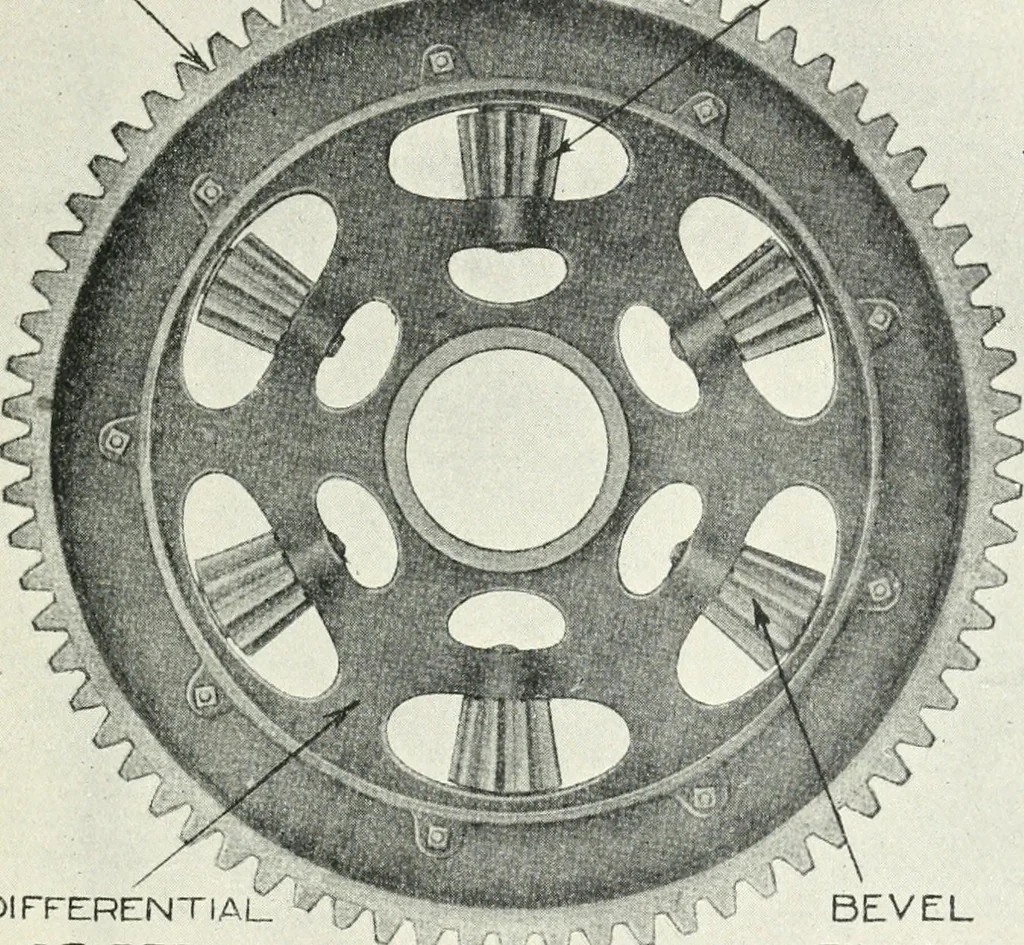

.^^^{/] ^ PINION … DIFFERENTIALSPIDER •^ c/v/t/V^- ■ BEVELPINION ViG. 112.—The Differential Spider With Bevel Pinions andSpur Drive Gear Attached. though one of the wheels was held almost stationaryand the other turned. The action of the differential pinions may be clearlyunderstood by giving due consideration to the…
