The design of marine engines and auxiliaries (1916)
Bragg, Edward Milton, b. 1874 · New York, D. Van Nostrand Co. · leaf 111

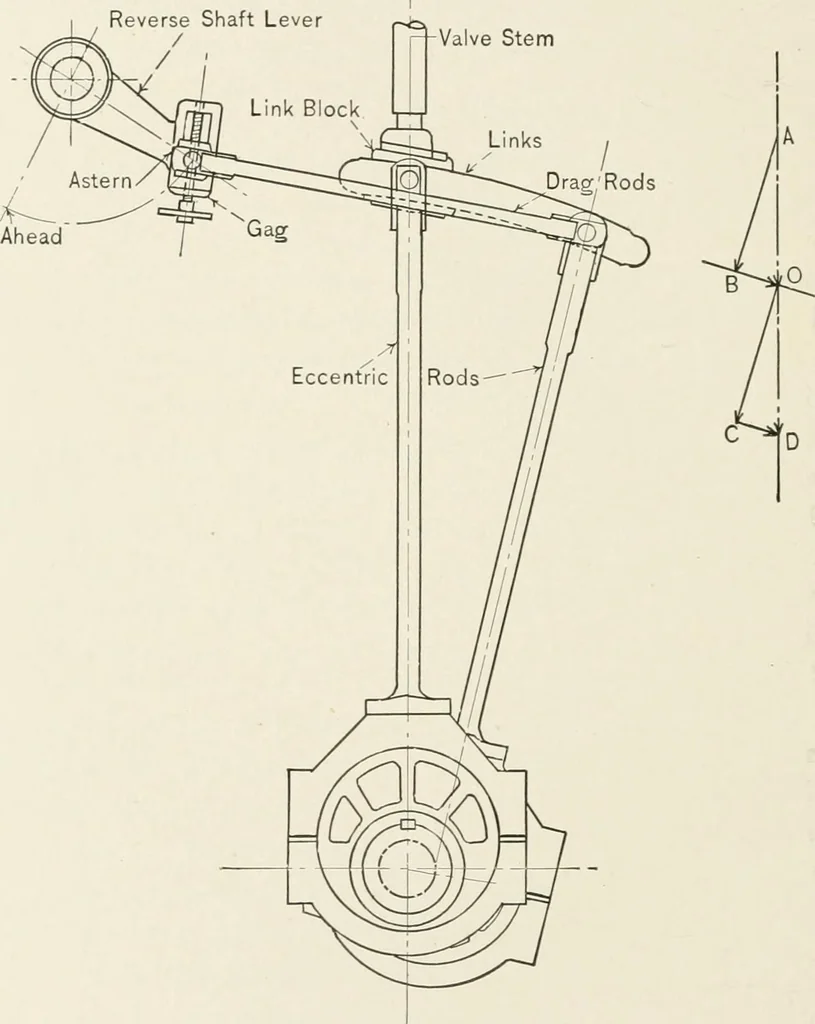

and a reaction in the drag rods. The maximum anglethat the links make with the horizontal is assumed to be . _, 2 E sin (go — d) ^ . sin ^= b ^^^^ E = eccentricity of valve. d = angle of advance. b = distance between eccentric rod pins, usually = 6 E. 96 THE DESIGN OF MARINE ENGINES AND… … Fig. 45. lowest point in the travel of the link block. For twin valves,with the stems yoked together, the bending moment would actupon the yoke, which always has plenty of strength. DESIGN OF ENGINE PARTS 97 109. Drag Rods. — If the eccentric rod were normal to thelink at the time when the latter…
Marine engines
