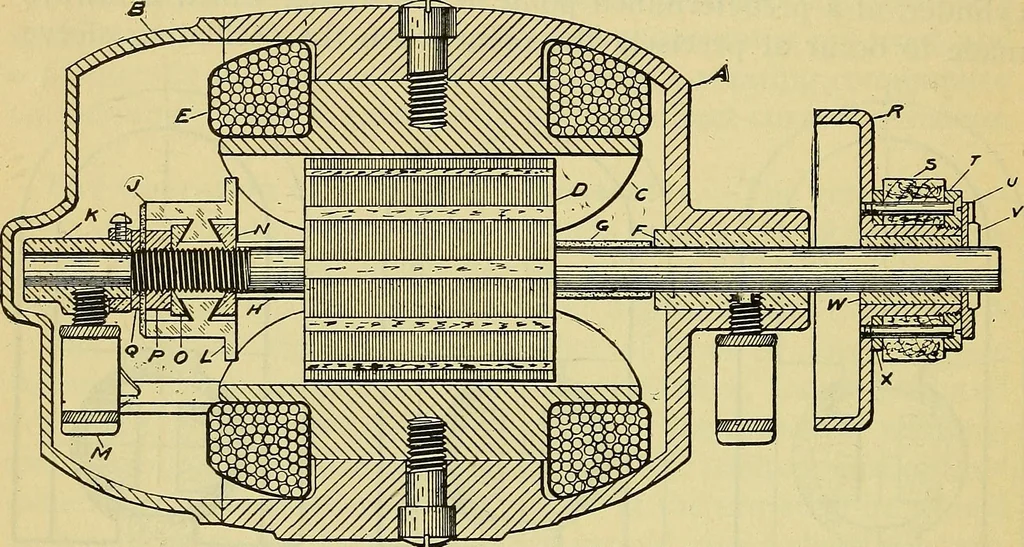

OPELLED VEHICLES. rotating portion of the magneto is to connect it direct to the fly-wheel of the engine, either by a belt or a brushing roller. Withthis arrangement it has usually been found that a current suf-ficient to begin sparking may be produced by the act of turningover the flywheel to… … Fig. 187.—Sectional Diagram of the Apple Igniting- Dynamo. The partsshown are: A, cast iron body containing the moving parts; B, the hingedlid of the body; C, the one-pole piece of the field magnets; D, the arma-ture; E, the coil of one of the field magnets; F, brass bearing of thearmature spindle;…
