Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 323

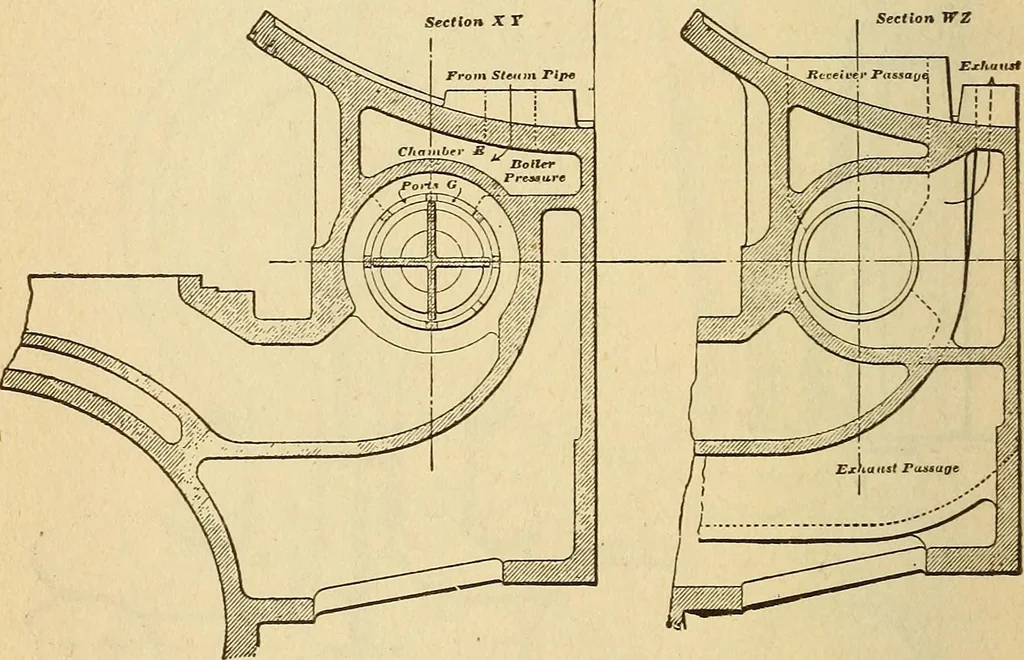

pressure of steam in thelow-pressure cylinder. 310 LOCOMOTIVE ENGINEERING Poppet valves F and G are placed in connection v/ithport E, one to prevent the escape of steam from thereceiver to pipe D when the locomotive is working-single expansion, and the other to close the passagefrom pipe D to the… … Figure 152 will be exerted on the intercepting and reducing valvesin opposition to the springs, and they will assume thepositions shown in Fig. 148. The ports of the intercepting valve A stand open toreceive the exhaust steam from the high pressurecylinder, and deliver it through the exhaust…
Locomotives
