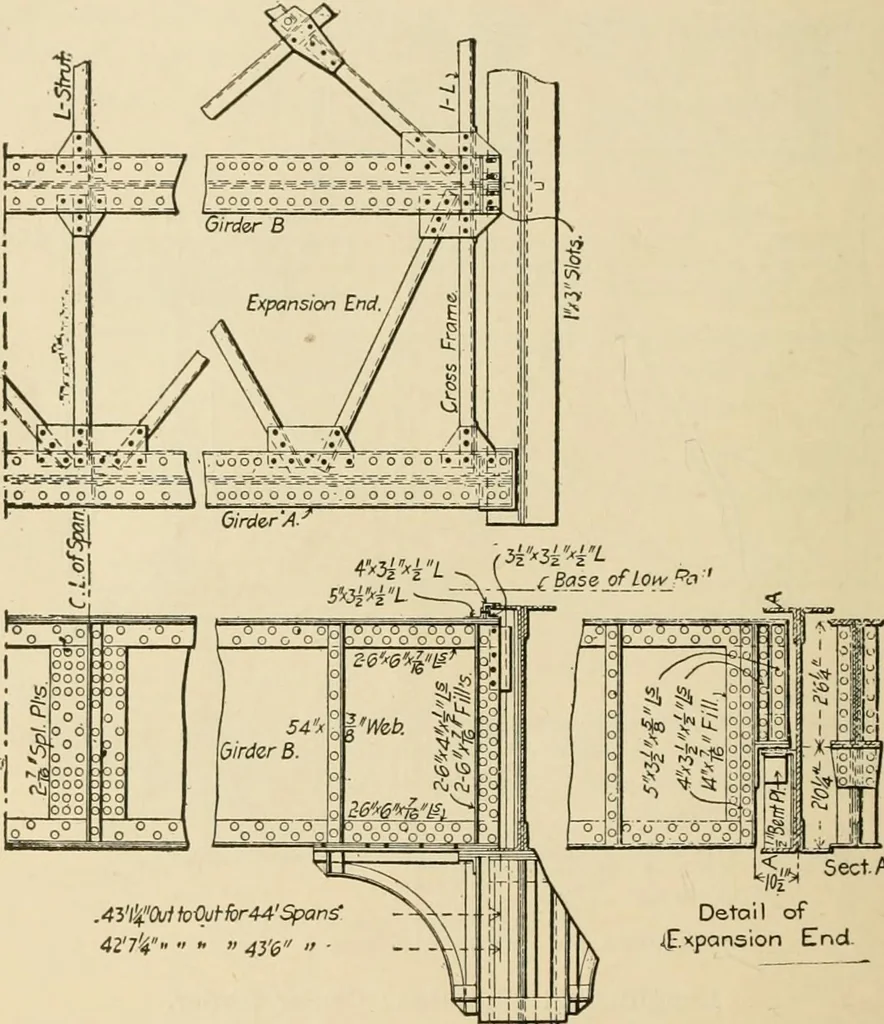

der which is thus practically splicedto the column. In the double-track division the transverse girders are about 304 BRIDGE CONSTRUCTIOS 27 ft. 3 in. long over all, and reach from out to out of thecolumns. They have four lines of longitudinal girders web-connected to them, one on the center line… … .4114M toOyi-fbr445pans4274 - 456 • Detail of<E>(pQnsion End SectA-A 4 Track LongUudmal Girder^ Fixed and Expansion Connections at Column andTransverse Girder. long over all, and overhang the column centers 7 ft. at eachend. They are designed to eventually carry eight lines of lon-gitudinal…
