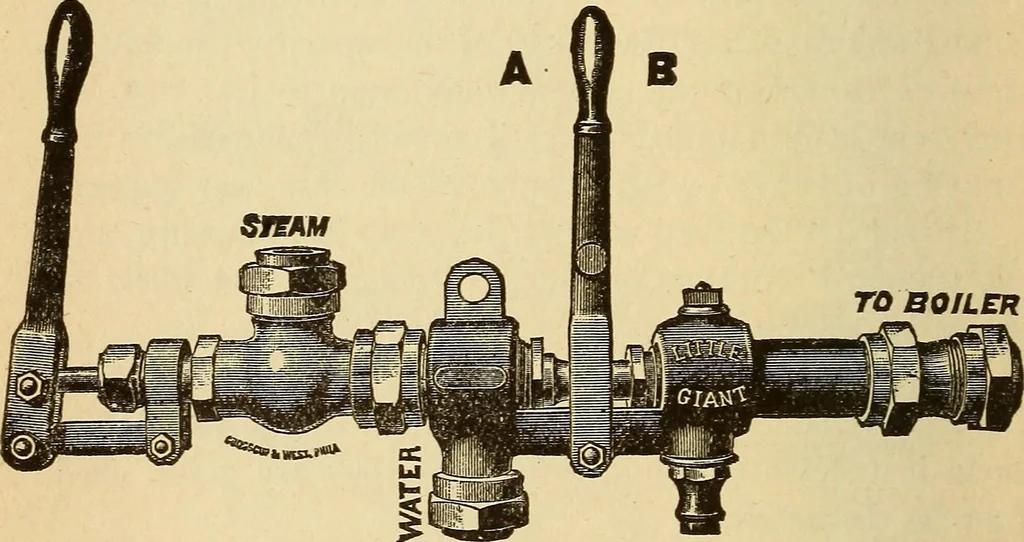

a short distanceto lift the water; when water runs from the overflow,steadily draw back the lever until overflow ceases. 368 LOCOMOTIVE ENGINEERING Do not increase the steam supply after overflow hasceased. Regulate for quantity with water-valve W To stop: Push in the lever. With Screw Motioii. To… … Figure 169 Regulate for quantity ^vith water-valve W. To stop: Close steam valve. Note I. To grade injector: Throttle water by valv»„W; if this is not sufficient, reduce the steam by push-ing in lever handle about x^alf-way, and in case of thescrew motion, by screwing in the steam spindle…
