Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 453

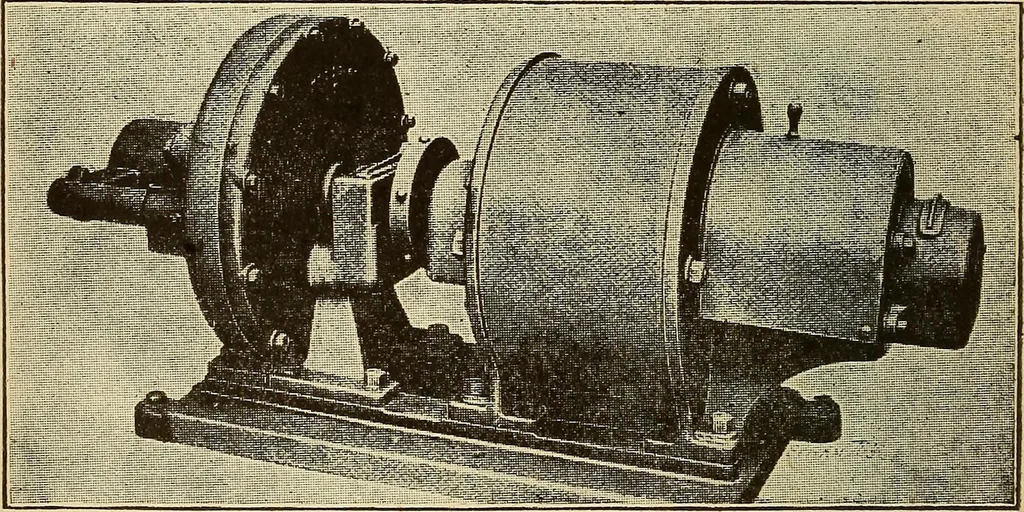

t steel casingfitting into grooves in the end plates. The armature 446 LOCOMOTIVE ENGINEERING is mounted in self-adjusting bronze bearings. Thesebearings are lubricated by means of rings, the shafthaving spiral grooves to carry the oil throughout thebearings. Overflow oil holes are drilled in both… … Figure 219The Minature Turbine and Dynamo with kerosene. Care must be taken to have the oil ringsin the slots in the bronze bearings. To Adjust the Lamp. To adjust the lamp, first havethe correct speed on the dynamo, and the commutatorand brushes working properly, then set the adjustingscrew on the…
Locomotives
