Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 549

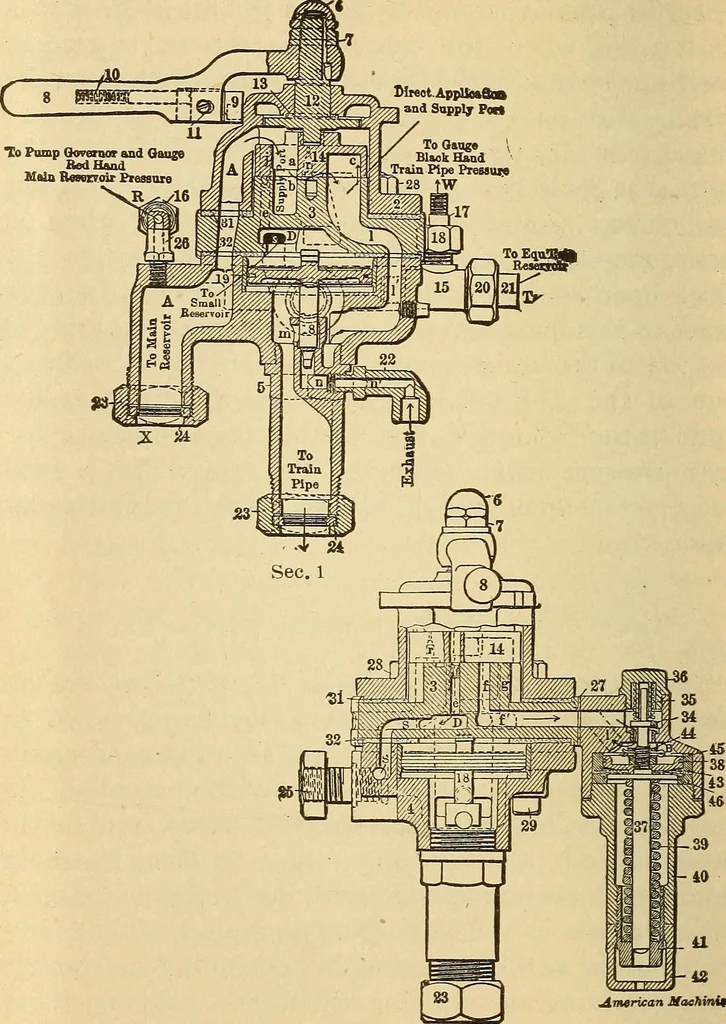

ep them released, and to dothese several things he has either to place the mainreservoir in communication with the trainpipe, or openthe trainpipe to the atmosphere, or shut off all com-munication, as the case may be, according to whetherhe is applying or releasing the brakes, keeping themset, or… … American JIfaehinttt Sec. 3Figure 229-6 Brake Valve and Old Style Feed Valve AUTOMATIC AIR BRAKES 535 equalizing discharge valve, and the feed valve attach-ment, or trainpipe governor. Of course there are gas-kets, springs, packing rings, the equalizing reservoir,etc., but they are matters of…
Locomotives
