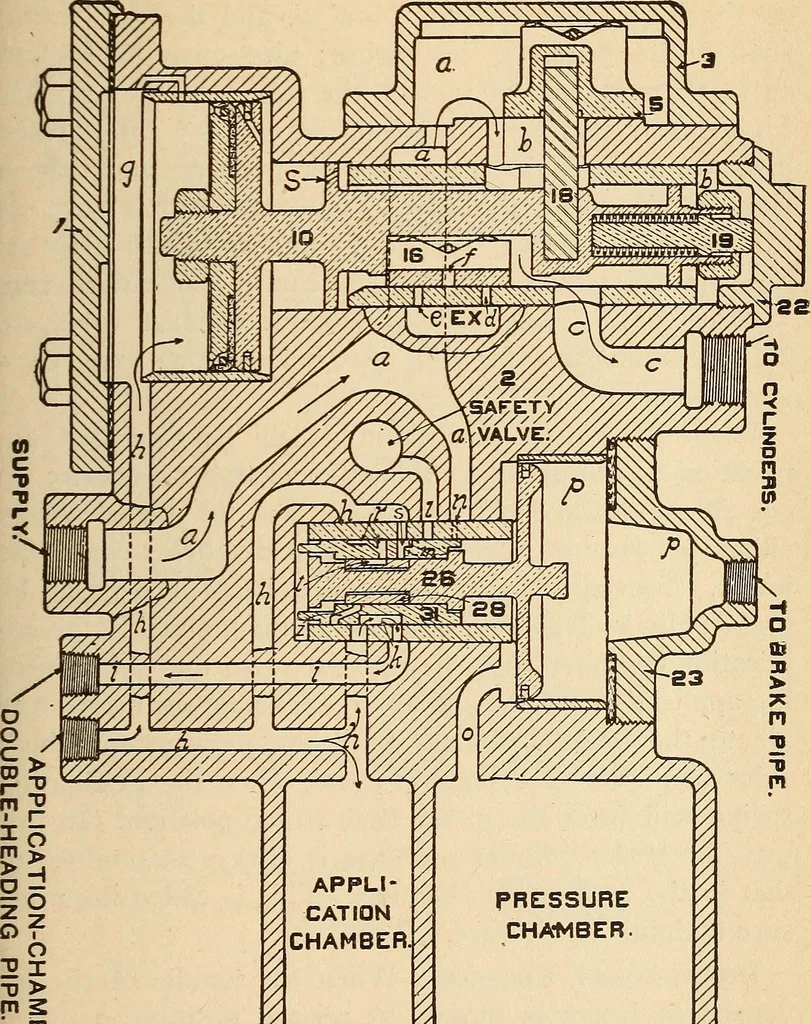

%/////////^///////////////////777^ FIG. 299. RELEASE, AUTOMATIC OR INDEPENDENT ET BRAKE EQUIPMENT 679 … ^////////^////////////////////y^ FIG. 300. INDEPENDENT APPLICATION 68o LOCOMOTIVE ENGINEERING movement of application piston lo causes exhaust valve16 to close exhaust ports e and d, and the graduatingstem 19 to compress its spring; also open applicationvalve 5 by its connection with the piston…
