Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 740

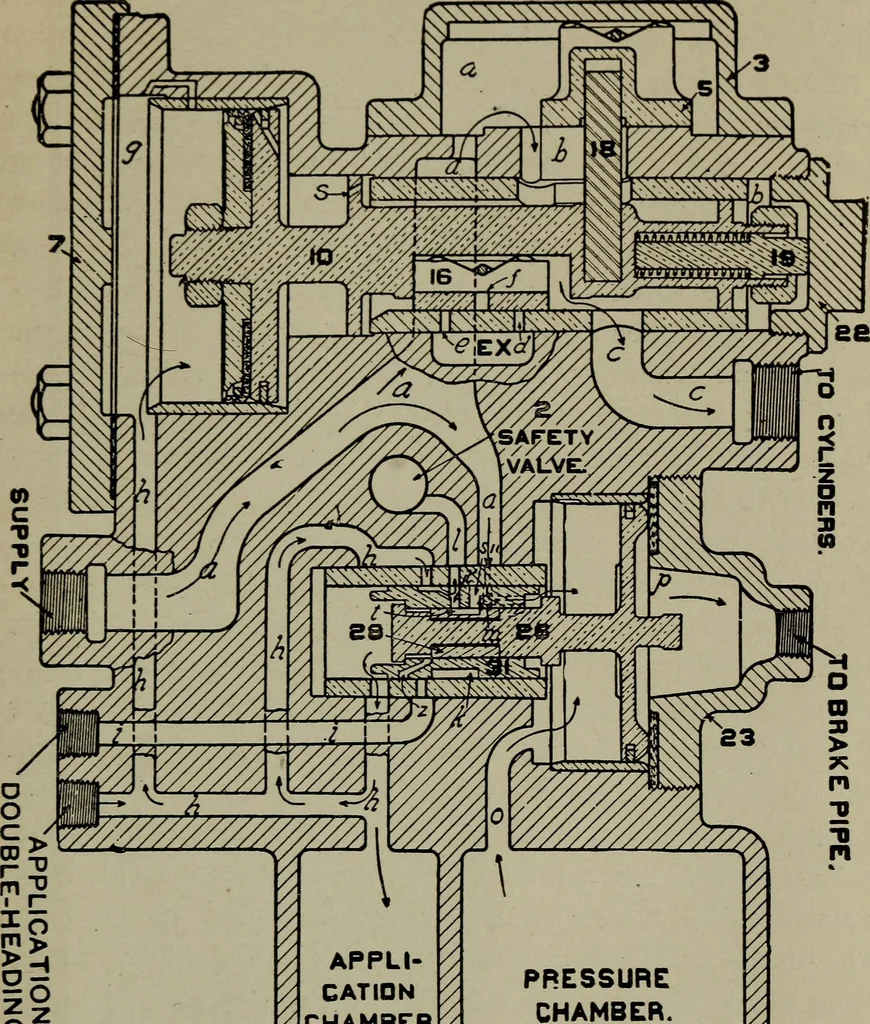

cation chamber pipe is closedby the rotary valve of the automatic brake valve. There-fore, to release the locomotive brakes, the automaticbrake valve must be moved to running position, or theindependent brake valve must be held in release position,,in which positions the rotary valve of either will… … o 1o 2* U > m 7) CATION £Y CHAMBER.^ W///////jW///////////Y//Y////77ffl CHAMBER. ^ FIG. 304. EMERGENCT 688 LOCOMOTIVE ENGINEERING exhaust valve 16 uncovers exhaust ports d and e, allow-ing brake-cylinder pressure to escape. Emergency. When a sudden and heavy brake-pipereduction is made, as in an…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
