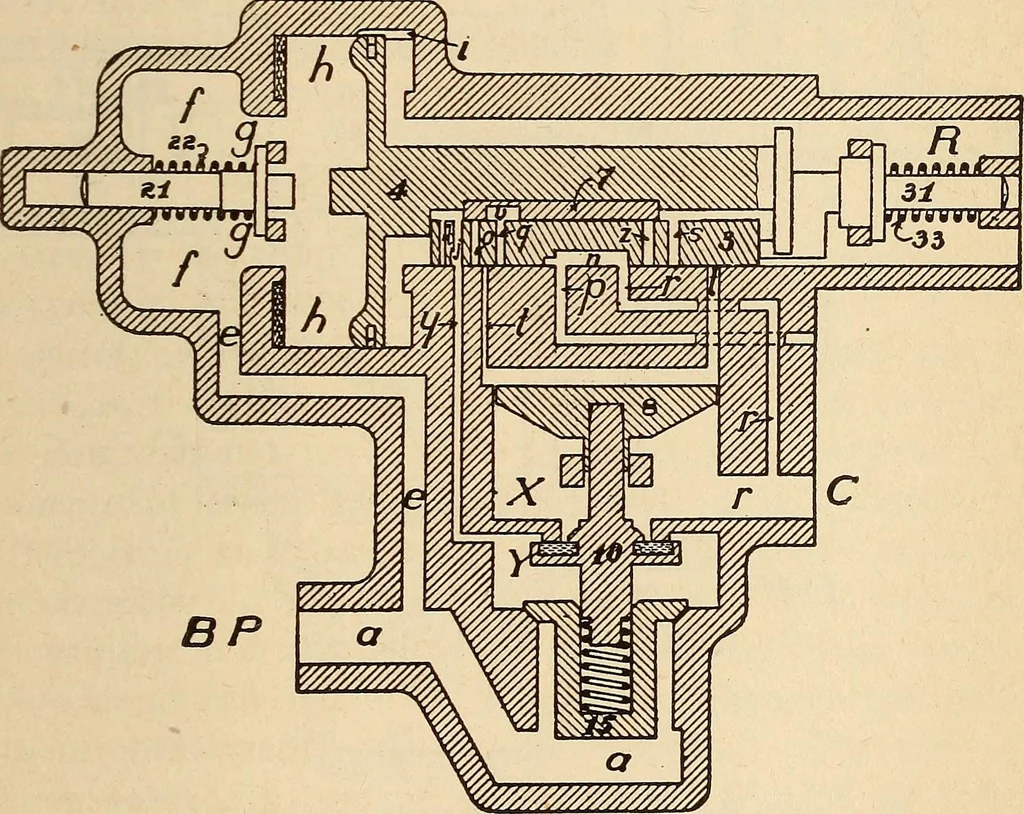

ly; thisport registers with port y in the slide-valve seat, whenin the full release position. Air then passes from cham-ber Y, through ports y and ; to chamber R, and the aux- ET BRAKE EQUIPMENT 733 iliary reservoir. Brake-pipe air in a raises check valve 15and supplies chamber Y with air as fast… … FIG. 326. FULL-RELEASE AND CHARGING POSITION release is fed through the fe^ groove i only. In thefollowing description, the K-2 triple valve only is re-ferred to; the operation of the K-i is exactly the sameexcept for the absence of port /. Air flows from the brake pipe to the auxiliary reser-voir…
