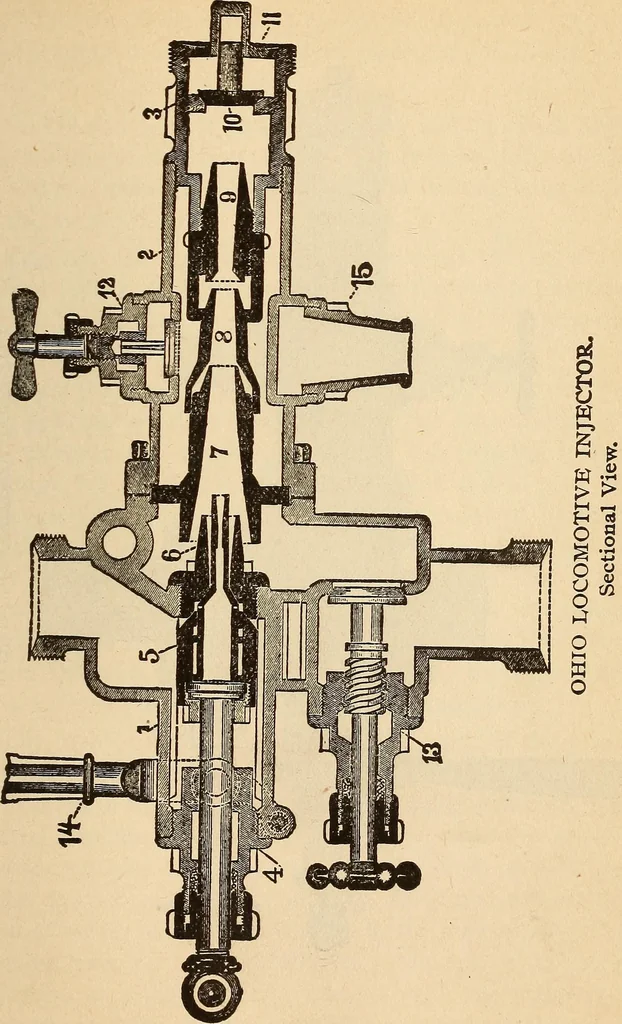

tube. 9—Delivery tube.10—Line check valve.II—Stop ring. 12—Overflow valve complete.13—Water valve complete.14—Starting lever. • 15—Overflow nozzle. The steam pipe leading from the dry steam space ofthe boiler is connected to the top of the injector abovesteam valve 5. The water or suction pipe is… … 77^ LOCOMOTIVE ENGINEERING
