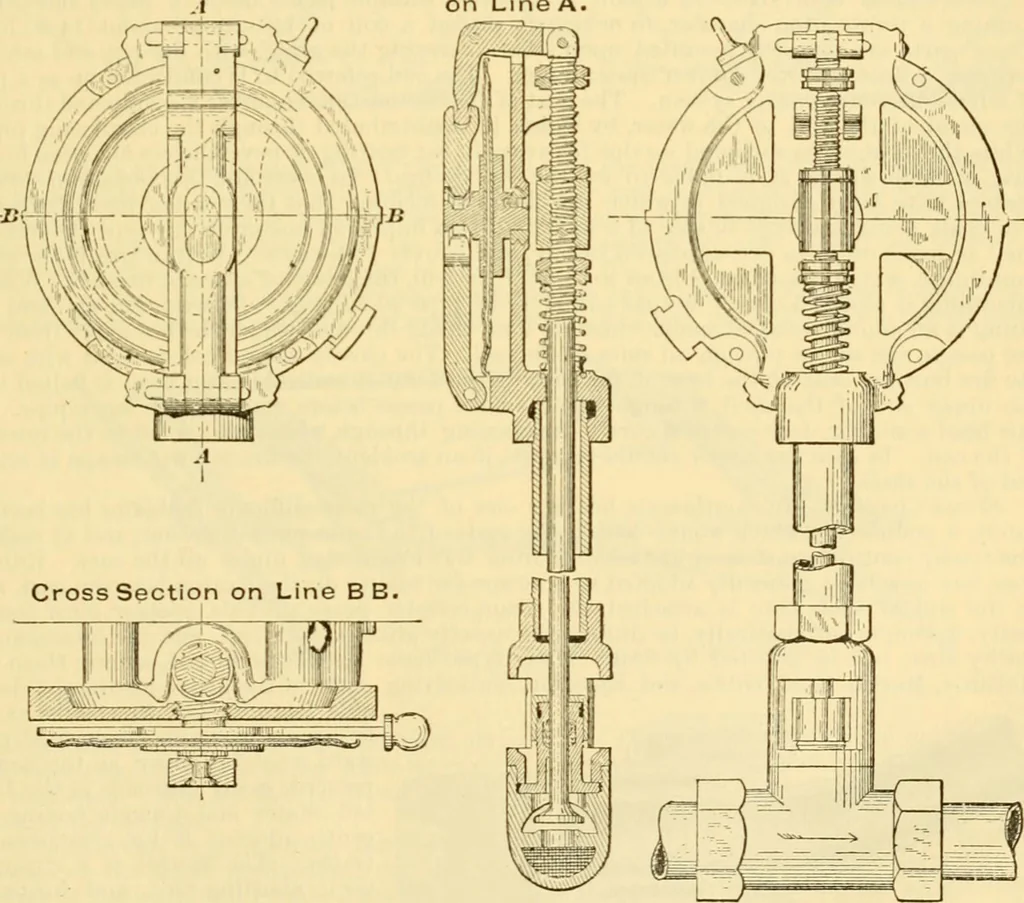

ion, the air-supply from the auxiliarreservoir is siuit olf, and the dia|>hragm of the pneumatic steam-valve is allowed to open, andsteam is again admitted to tlie car. The Consolidated Car-Heatimj Co.s Eegulator is a graduated apparatus, and is so arrangedthat the steam-valve at ail… … Fig. 4.—Steam heat-regulator. the valve is entirelv closed. Tlie amount of steam which can pass the steam-valve when thetemperature of thecar is 65° is about four times as much as is suflRcient to maintain an eventemperature in the car when once heated up—in other words, steam sutRcient to condense…
