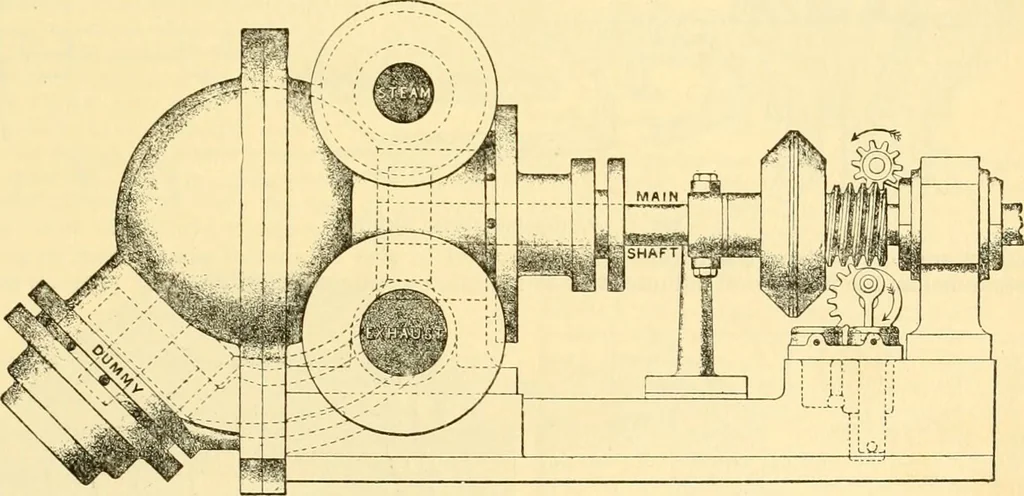

ively the main and dummy blades.Tae piston, replacing the geometrical disk of infinitesimal thickness, has to be made of sub-stantial thickness, and fitted effectively with a steam-tight packing all round its edge. Thehinge union along the straight edge of each blade has to be made a cylinder of… … Fig. 9.—Tower spherical engina Thickness is obtained for the piston by deducting hlfa its thickness from each of the two flatsides of each blade—that is, the disk Pand sector B. originally depicted as in Figs. 5 and 6,are altered to the forms shown in Figs. 7 and 8. Two cylindrical ribs, having…
