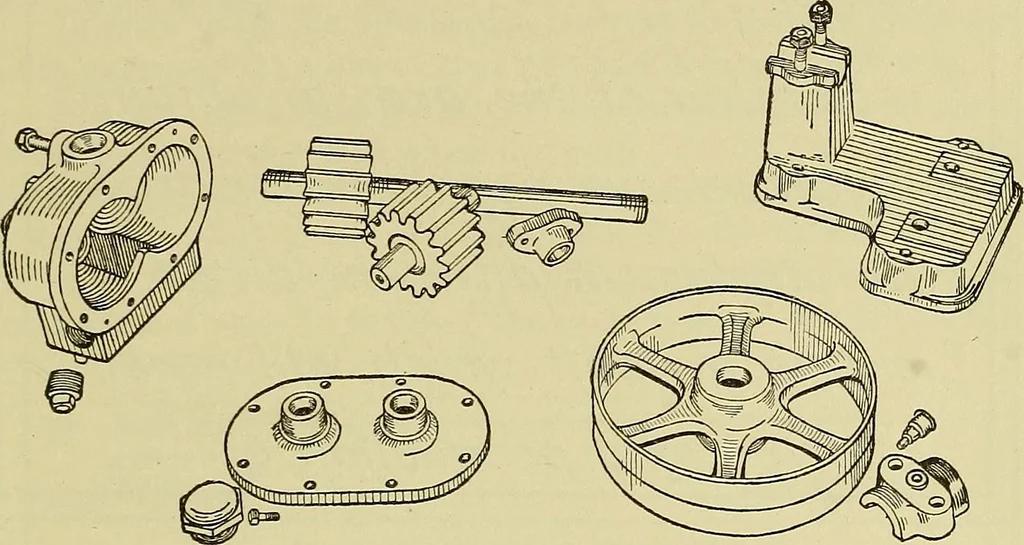

ed: To make the plate to an enlarged scale. PREPARATORY INSTRUCTIONS FOR DRAWING PLATE 42 The model for this plate should be a complete machine orsome unit of a machine which is composed of several parts. The MEASUREMENTS 277 parts of the model then can be divided into several groups andeach group… … Fig. 318. Shoaving Groups of Parts of Machine for Assignment DATA FOR DRAWING PLATE 42 Given: A part or group of parts of a machine. Bequired: To make an orthographic sketch of each partassigned by the instructor. Instructions: In making the sketches proceed according tothe steps outlined for Plate…
