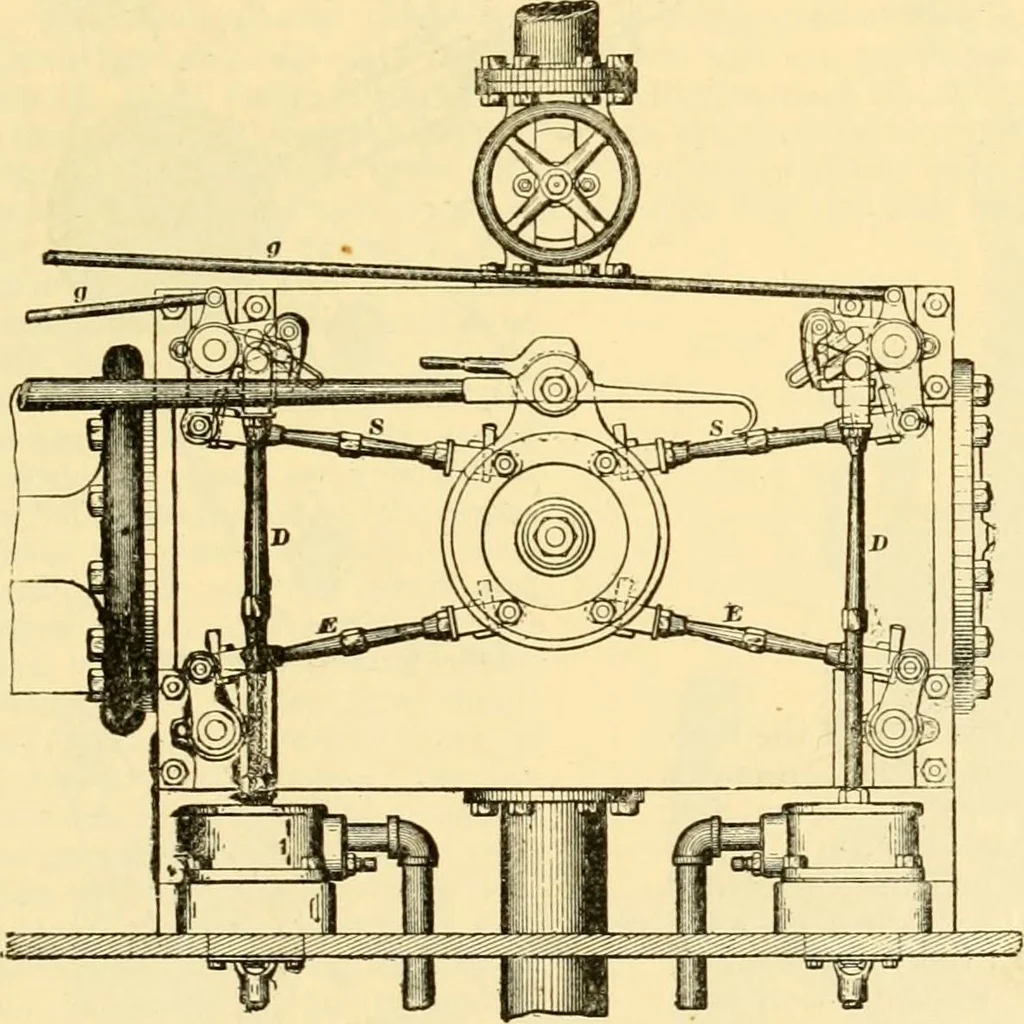

position of the point/, and a correspond-ing change in the time of release. The action of the automatic safety-stop motion is illus-trated by Figs. 53 and 55. Fig. 53 shows the position of the various parts when the engineis at its lowest normal speed, and the hook E is at the point of engagement… … FiG. 50.—Fishkill-Corliss engine—valve-mOtion. 314 ENGINES, STEAM, STATIONAKY RECIPROCATING. belt be broken, or if from any other cause the governor-balls should fall below this point, thebell-crank H will be moved in the direction indicated by the arrow in Fig. 55, the emboss-
